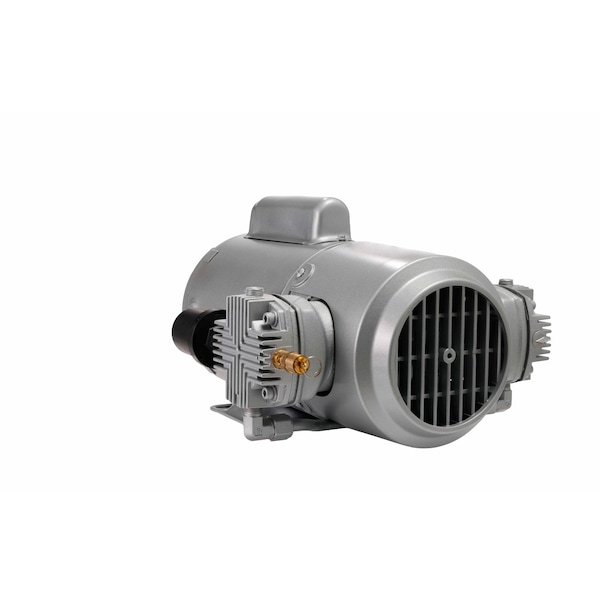

Piston Air Compressor, Size 1/4", 1725 RPM
Mfr # 6HCA-10-M616NEX
Zoro # G0664916
product price:
$
1,881.99
/ea
Free Shipping & Returns
Key Features
Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
115/230V AC
Inlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6HCA-10-M616NEX
- Zoro #
- G0664916
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 15.68 in
- Overall Height
- 8.42 in
- Overall Width
- 12.29 in
- Stroke Length
- 3/4 in
- Mounting Hole Diameter
- 7/20 in
- Wire Rope Length
- 15.68 in
- Length
- 15.68 in
Description
The Gast 6HCA-10-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 5.35 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 8.7 A, and a measured sound level of 81 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 15.68 x 12.29 x 8.42 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
