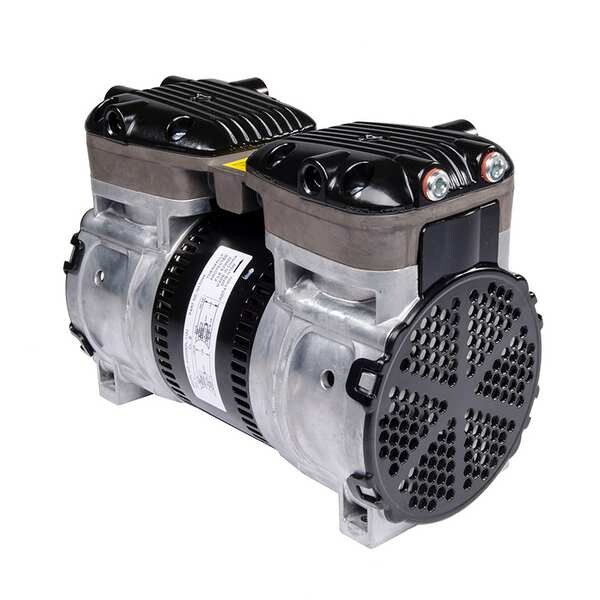

Rocking Piston Compressor Vacuum Pump

  • Mfr # 86R635-101-N470X
  • Zoro # G503541137
product price:
$
885.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Phase
Single
Voltage
110/120 to 220/240V AC, 115/120 to 230/240V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
86R635-101-N470X
Zoro #
G503541137
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
9.53 in
Overall Height
7.08 in
Overall Width
5.08 in
Wire Rope Length
9.53 in
Length
9.53 in

Details

Item
Rocking Piston Compressor Vacuum Pump
Lubrication Type
Oilless
Phase
Single
Voltage
110/120 to 220/240V AC, 115/120 to 230/240V AC
Standards
CE, UL Listed
Output Power
0.5 hp
Inlet Type
NPT
Maximum Continuous Pressure
125 psi
Insulation Class
ORG
Frequency
50 Hz, 60 Hz
Maximum Speed
1,725 RPM
Outlet Type
NPT
Cylinder Material
Aluminum
Pump Type
Rocking Piston
Environment
Clean Dust Free
Sound Level
65 dBA
Series
Gast
Maximum Speed @ 50 Hz
1,425 RPM
Fluid Compatibility
Air
Wattage
0.37 kW
Maximum Pressure @ 50 Hz
125 psi
Thermal Protection
Yes
Current Rating
4.3/2.2 A, 4.6/2.4 A
Maximum Vacuum
26.8 in Hg
Maximum Pressure
125 psi
Weight
19.1 lb
Free Air Flow Rate
2.4 cfm, 3 cfm
Flow Rate @ 0 psi @ 50 Hz
2.4 cfm
Air Tank Style
Tankless
Maximum Intermittent Pressure
125 psi
Flow Rate @ 50 psi @ 50 Hz
1.6 cfm
Piston Type
Rocking
Flow Rate @ 20 psi @ 50 Hz
2 cfm
Flow Rate @ 40 psi @ 50 Hz
1.8 cfm
Power Source
Corded Electric
Duty Cycle
Continuous
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
41 Degrees F
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Outlet Gender
Female
Enclosure Type
Clean Dust Free
Inlet Gender
Female
Motor Design
Capacitor Start
Electrical Connection
Wire Leads
Valve Type
Reed
Life Expectancy
16,000 hr
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 86R635-101-N470X is an oil-free rocking piston compressor vacuum pump. It operates on 110/120 to 220/240V AC, 115/120 to 230/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2.4 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.8 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 4.3/2.2 A, 4.6/2.4 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.53 x 5.08 x 7.08 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
