  11. Stock 28/Skid 1Am-Nrv-60-Gr11 Air Motor
Shop All Air Motors
Gast

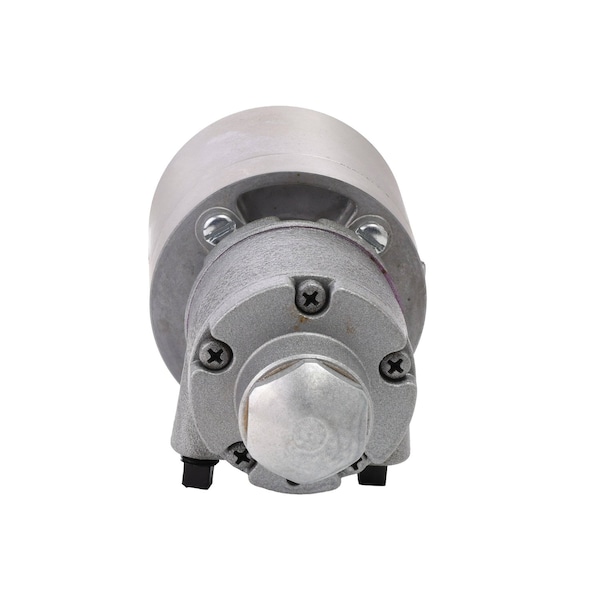

Stock 28/Skid 1Am-Nrv-60-Gr11 Air Motor

product price: $751.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Air
  • Rotation CW/CCW
  • Overall Length 6 7/8 in
  • Length Less Shaft 5 1/2 in
  • Mount Type Face
See all product information

Product Information

  • Brand Gast
  • MFR # 1AM-NRV-60-GR11
  • Zoro # G0602430
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 6 7/8 in
Length Less Shaft 5 1/2 in
Shaft Length 1 3/8 in
Overall Height 2 15/16 in
Overall Width 2 15/16 in
Outside Diameter 2 15/16 in
Mount Hole Center-to-Center Length 2 in
Mount Hole Center-to-Center Width 2 in
Inlet Size 1/8 in
Shaft Diameter 1/2 in
Manufacturers Warranty Length 1 yr

Details

Item Air Motor
Motor Design Air
Rotation CW/CCW
Mount Type Face
Includes AGMA #8 Lubricant in Gear Chamber, High Strength Steel Output Shaft with Key and Plastic Cover, Tapered Roller Bearing and Hardened Polished Steel Worm Mating with Forged, Heat Treated High Manganese Bronze Worm Gear
Standards ATEX
Weight 3.1 lb
Air Consumption 21 cfm
Minimum Flow Rate 3 cfm
System of Measurement Inch
Motor Frame Material Cast Iron
Mounting Orientation Any Angle
Housing Material Aluminum
Output Power @ 25% Maximum Speed 0.12 hp
Maximum Operating Pressure 100 psi
Output Power @ 50% Maximum Speed 0.21 hp
Shaft Material Steel
Minimum Operating Pressure 20 psi
Inlet Gender Female
Shaft Orientation Inline
Air Inlet Type NPT
Output Power @ Maximum Speed 0.35 hp
Nameplate Speed 350 RPM
No Load Speed 350 RPM
Air Inlet Center to Center Distance 1 3/4 in
Starting Torque 45 in-lb
Shaft Material Grade 8620
Minimum Ambient Temperature 34 Degrees F
Maximum Ambient Temperature 248 Degrees F
Housing Material Grade 380 Aluminum
Maximum Flow Rate 21 cfm
Series 1AM
Housing Material Finish Unfinished
Gear Ratio 15:1
Maximum Torque 62 in-lb
Number of Vanes 8

Description

Air Motor, Output Power @ Maximum Speed 0.35 hp, Maximum Torque 62 in-lb, No Load Speed 350 RPM, Maximum Flow Rate 21 cfm, Shaft Diameter 1/2 in, Shaft Length 1 3/8 in, Mount Type Face, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Gear Ratio 15:1, Air Consumption 21 cfm, Housing Material Finish Unfinished, Air Inlet Center to Center Distance 1 3/4 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed 0.12 hp, Weight 3.1 lb, Series 1AM
