Shop GAST

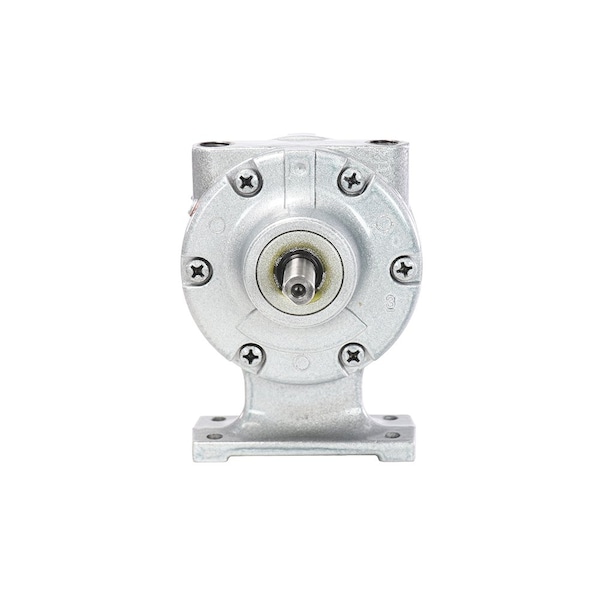

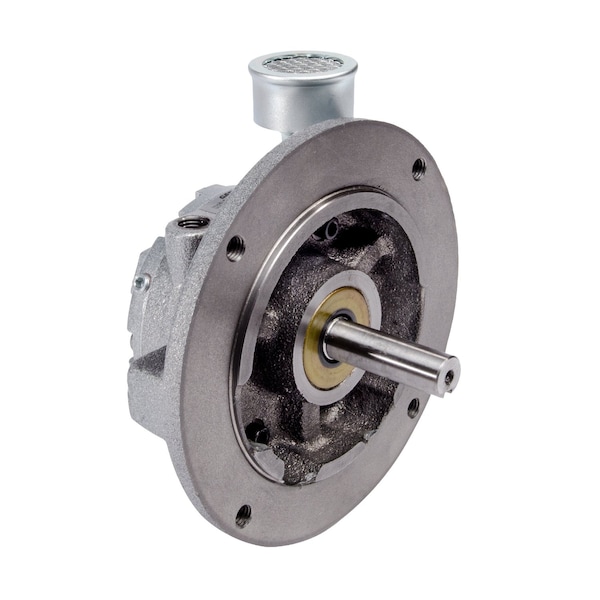

Stock 2Am-Ncc-43A Air Motor

  • Mfr # 2AM-NCC-43A

  • Zoro # G0602555

product price:
$
445.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CCW
Overall Length
5 in
Length Less Shaft
3 41/50 in
Includes
Muffler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2AM-NCC-43A
Zoro #
G0602555
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CCW
Includes
Muffler
Mount Type
Hub
Standards
ATEX
Weight
4.2 lb
Output Power @ 50% Maximum Speed
0.5 hp
Maximum Ambient Temperature
248 Degrees F
Keyway Type
Square
Nameplate Speed
3,000 RPM
Minimum Ambient Temperature
34 Degrees F
Output Power @ 25% Maximum Speed
0.3 hp
Series
2AM
Housing Material Finish
Painted
Air Inlet Type
NPT
Air Consumption
30 cfm
Housing Material Grade
G2500
Minimum Flow Rate
1 cfm
No Load Speed
3,000 RPM
System of Measurement
Inch
Starting Torque
21 in-lb
Air Inlet Center to Center Distance
2 1/2 in
Shaft Material
Steel
Shaft Material Grade
197-223 BHN
Minimum Operating Pressure
20 psi
Mounting Orientation
Any Angle
Maximum Flow Rate
30 cfm
Output Power @ Maximum Speed
0.9 hp
Maximum Torque
19.5 in-lb
Maximum Operating Pressure
100 psi
Inlet Gender
Female
Motor Frame Material
Cast Iron
Housing Material
Cast Iron
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
4
Output Shaft Type
Keyed

Description

Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 4.2 lb, Housing Material Grade G2500, Housing Material Finish Painted
