Shop All Air Motors
Gast

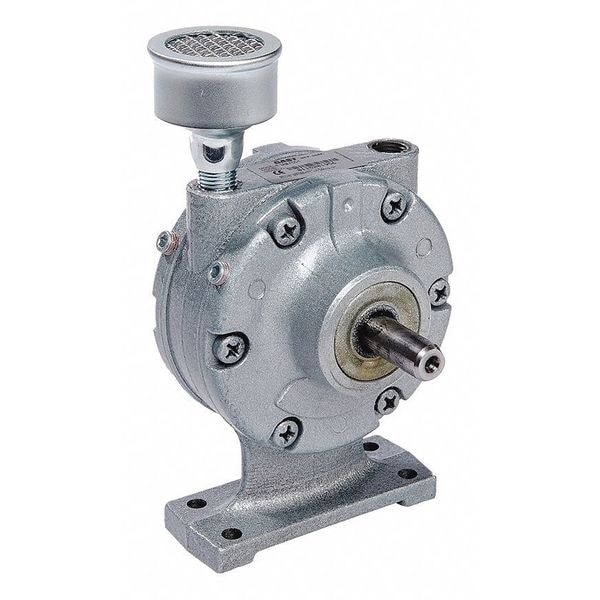

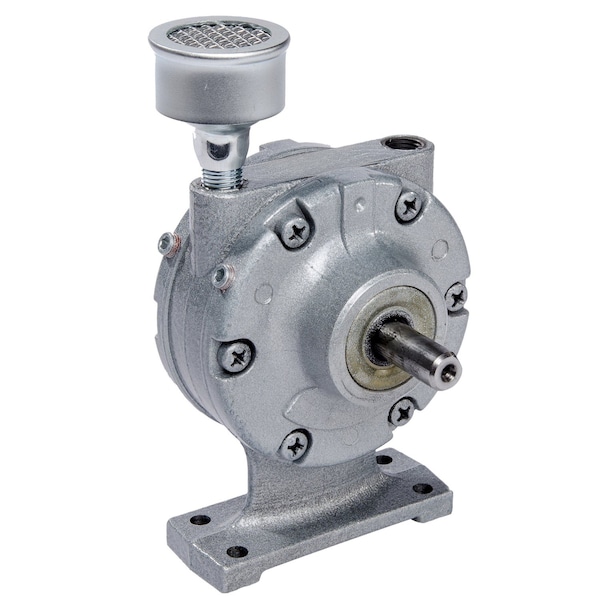

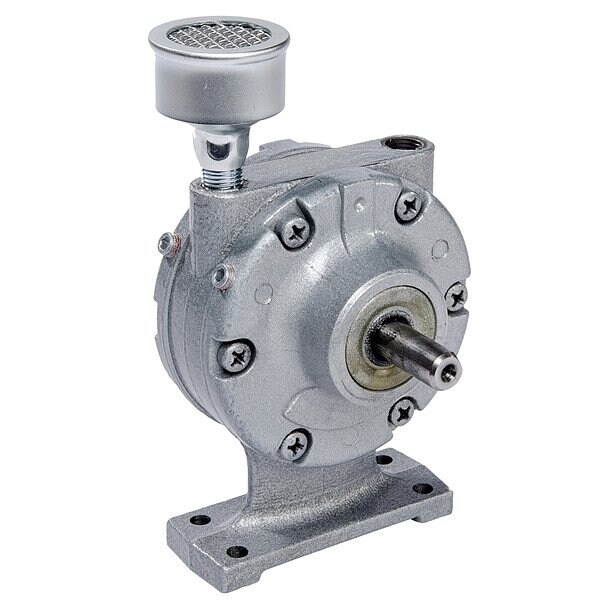

Stock 30/Skid 2Am-Fcc-1 Air Motor

product price: $326.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CCW
  • Overall Length 5 in
  • Shaft Length 1 1/8 in
  • Includes Muffler
See all product information

Product Information

  • Brand Gast
  • MFR # 2AM-FCC-1
  • Zoro # G0602686
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 5 in
Shaft Length 1 1/8 in
Length Less Shaft 3 41/50 in
Outside Diameter 4 1/8 in
Manufacturers Warranty Length 1 yr
Overall Width 4 1/8 in
Overall Height 5 1/4 in
Inlet Size 1/4 in
Shaft Diameter 1/2 in

Details

Item Air Motor
Motor Design AIR
Rotation CCW
Includes Muffler
Mount Type Foot
Standards ATEX
Air Inlet Type NPT
Minimum Operating Pressure 20 psi
System of Measurement Inch
Weight 4.4 lb
Output Power @ 25% Maximum Speed 0.3 hp
Air Inlet Center to Center Distance 2 1/2 in
Shaft Material Steel
Housing Material Finish Painted
Maximum Flow Rate 30 cfm
Series 2AM
Shaft Material Grade 197-223 BHN
Nameplate Speed 3,000 RPM
Minimum Flow Rate 1 cfm
Starting Torque 21 in-lb
Mounting Orientation Any Angle
Air Consumption 30 cfm
Maximum Ambient Temperature 248 Degrees F
Output Power @ 50% Maximum Speed 0.5 hp
No Load Speed 3,000 RPM
Housing Material Grade G2500
Output Power @ Maximum Speed 0.9 hp
Minimum Ambient Temperature 34 Degrees F
Maximum Operating Pressure 100 psi
Motor Frame Material Cast Iron
Maximum Torque 19.5 in-lb
Inlet Gender Female
Housing Material Cast Iron
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 4.4 lb, Housing Material Grade G2500, Housing Material Finish Painted
