  11. Stock 30/Skid 4Am-Nrv-22B Air Motor
Shop All Air Motors
Gast

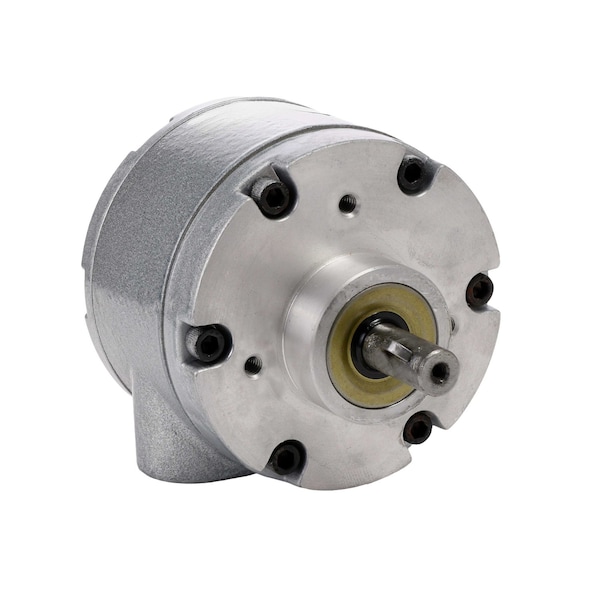

Stock 30/Skid 4Am-Nrv-22B Air Motor

product price: $399.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CW/CCW
  • Overall Length 5 3/4 in
  • Standards ATEX
  • Mount Type Face, Hub
See all product information

Product Information

  • Brand Gast
  • MFR # 4AM-NRV-22B
  • Zoro # G0602570
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 5 3/4 in
Shaft Length 1 1/8 in
Length Less Shaft 4 7/10 in
Overall Width 4 in
Overall Height 4 in
Outside Diameter 4 in
Mount Hole Center-to-Center Width 2 3/8 in
Inlet Size 1/4 in
Mount Hole Center-to-Center Length 2 3/8 in
Manufacturers Warranty Length 1 yr
Shaft Diameter 1/2 in
Keyway Width 1/8 in
Keyway Length 1/2 in

Details

Item Air Motor
Motor Design AIR
Rotation CW/CCW
Standards ATEX
Mount Type Face, Hub
Includes Muffler
Weight 7 lb
Output Power @ Maximum Speed 1.7 hp
Minimum Ambient Temperature 34 Degrees F
Housing Material Finish Painted
Shaft Material Grade 197-223 BHN
Keyway Type Woodruff
Output Power @ 50% Maximum Speed 1.1 hp
Air Inlet Type NPT
Air Consumption 72 cfm
Air Inlet Center to Center Distance 2 1/2 in
Nameplate Speed 3,000 RPM
Starting Torque 32 in-lb
Mounting Orientation Any Angle
Minimum Flow Rate 5 cfm
Minimum Operating Pressure 20 psi
Shaft Material Steel
System of Measurement Inch
Maximum Ambient Temperature 248 Degrees F
Series 4AM
Maximum Flow Rate 72 cfm
No Load Speed 3,000 RPM
Housing Material Grade G2500
Output Power @ 25% Maximum Speed 0.65 hp
Maximum Torque 35 in-lb
Maximum Operating Pressure 100 psi
Inlet Gender Female
Housing Material Cast Iron
Motor Frame Material Cast Iron
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Face, Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 7 lb, Housing Material Grade G2500, Housing Material Finish Painted
