  11. Stock 36/Skid 1Up-Nrv-3A Air Motor
Shop All Air Motors
Gast

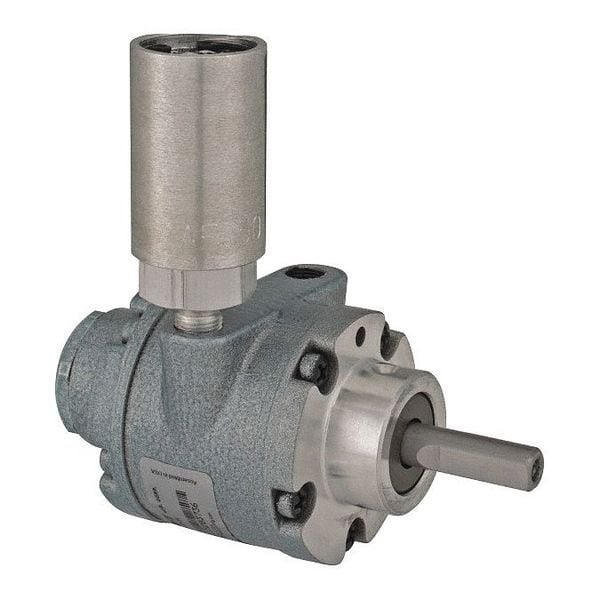

Stock 36/Skid 1Up-Nrv-3A Air Motor

product price: $275.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CW/CCW
  • Overall Length 4 3/4 in
  • Shaft Length 1 1/8 in
  • Length Less Shaft 3 11/20 in
See all product information

Product Information

  • Brand Gast
  • MFR # 1UP-NRV-3A
  • Zoro # G0602729
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 4 3/4 in
Shaft Length 1 1/8 in
Length Less Shaft 3 11/20 in
Inlet Size 1/8 in
Outside Diameter 2 1/2 in
Overall Height 2 1/4 in
Overall Width 2 1/2 in
Shaft Diameter 3/8 in
Manufacturers Warranty Length 1 yr

Details

Item Air Motor
Motor Design AIR
Rotation CW/CCW
Mount Type Hub
Includes Muffler
Standards ATEX
Mounting Orientation Any Angle
Shaft Material Grade 197-223 BHN
Maximum Ambient Temperature 248 Degrees F
Shaft Material Steel
Air Consumption 27 cfm
Nameplate Speed 6,000 RPM
Maximum Flow Rate 27 cfm
Series 1UP
Minimum Ambient Temperature 34 Degrees F
Starting Torque 5 in-lb
Output Power @ 50% Maximum Speed 0.26 hp
Output Power @ 25% Maximum Speed 0.15 hp
Minimum Operating Pressure 20 psi
Air Inlet Center to Center Distance 1 3/4 in
Output Power @ Maximum Speed 0.45 hp
No Load Speed 6,000 RPM
Air Inlet Type NPT
System of Measurement Inch
Weight 3 lb
Housing Material Finish Painted
Minimum Flow Rate 5 cfm
Housing Material Grade G2500
Maximum Operating Pressure 80 psi
Motor Frame Material Cast Iron
Housing Material Cast Iron
Maximum Torque 4.9 in-lb
Inlet Gender Female
Shaft Orientation Inline
Number of Vanes 4
Alternate Part Number 1UP-NRV-15

Description

Air Motor, Output Power @ Maximum Speed 0.45 hp, Maximum Torque 4.9 in-lb, No Load Speed 6,000 RPM, Maximum Flow Rate 27 cfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 80 psi, Includes Muffler, Keyway Width Not Applicable, Weight 3 lb, Housing Material Grade G2500, Housing Material Finish Painted
