Shop All Regenerative Blowers
Gast

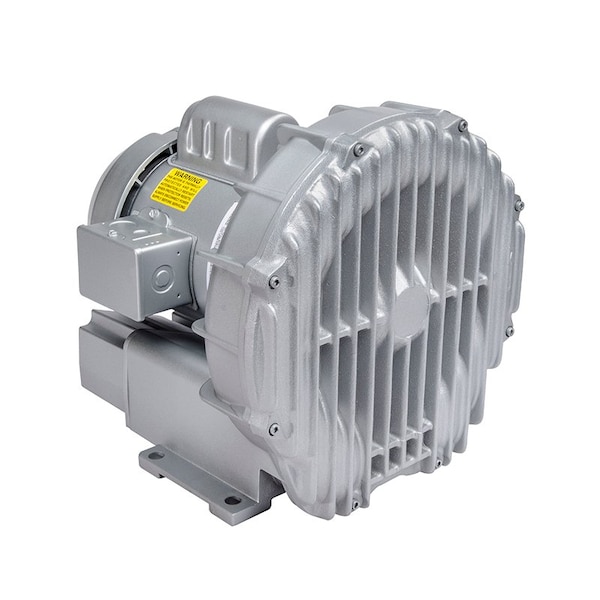

Stock 4/Skid R4P315A Regenerative Blower

product price: $2,244.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC
  • Inlet Size 1 1/2 in
  • Outlet Size 1 1/2 in
  • Standards CE, cURus
  • Overall Height 13.61 in
See all product information

Product Information

Dimensions

Inlet Size 1 1/2 in
Outlet Size 1 1/2 in
Overall Height 13.61 in
Overall Length 13.67 in
Overall Depth 13.67 in
Overall Width 13.26 in

Details

Item Regenerative Blower
Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC
Standards CE, cURus
Thermal Protection No
Phase Three
Housing Material Aluminum
Frequency 50 Hz, 60 Hz
Maximum Flow Rate 127 cfm
Sound Level 74 dBA
Wattage 0.75 kW
Weight 43 lb
Maximum Speed 2,850 RPM, 3,450 RPM
Maximum Ambient Temperature 104 Degrees F
Noise Level 74 dBA
Output Power @ 50 Hz 1 hp
Maximum Operating Pressure 63 in wc
Output Power 1.5 hp
Inlet Type NPT
Maximum Flow Rate @ 50Hz 110 cfm
Outlet Type NPT
Maximum Vacuum 59 in wc
Series Gast
Duty Cycle Continuous
Maximum Flow Rate Vacuum 127 cfm @ 59 in wc
Voltage @ 50 Hz 190 to 220/380 to 415V AC
Outlet Gender Female
Inlet Gender Female
Current Rating 4.0-3.8/1.9 A
Enclosure Type Totally Enclosed Fan-Cooled
Current Rating @ 50 Hz 3 A; 1 A
Enclosure Rating NEMA 56C
Maximum Air Temperature Rise 80 Degrees F

Description

Regenerative Blower, Phase Three, Output Power 1.5 hp, Maximum Operating Pressure 63 in wc, Maximum Flow Rate 127 cfm, Maximum Vacuum 59 in wc, Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC, Inlet Size 1 1/2 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1 1/2 in, Outlet Type NPT, Outlet Gender Female, Current Rating 4.0-3.8/1.9 A, Frequency 50 Hz, 60 Hz, Housing Material Aluminum
