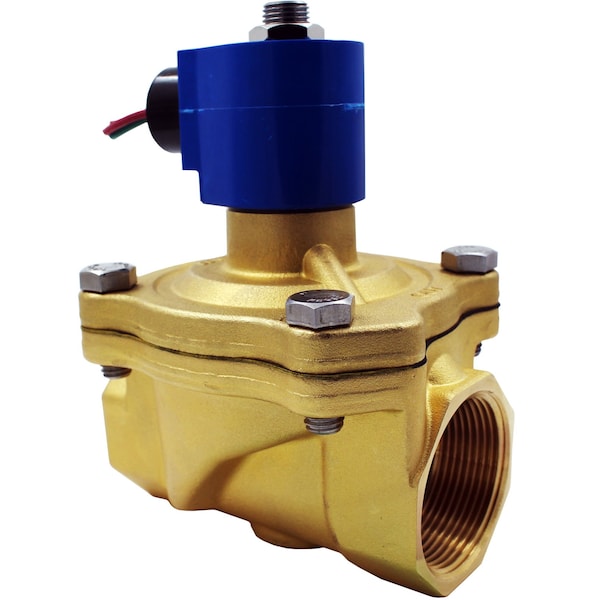

Solenoid Valve, 2-Way, 1-1/2 in Pipe Size, 24V/50V to 60V, Zero Differential, Diaphragm, Brass
Mfr # S201GF24V5HJ2
Zoro # G4520768
Key Features
Specifications
Product Information
- MFR #
- S201GF24V5HJ2
- Zoro #
- G4520768
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1-1/2 in
- Orifice Diameter
- 1-1/4 in
Details
- For Media
- Air, Gas, Water
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24V/50V to 60V
- Valve Type
- Zero Differential, Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- Viton, FKM
- Operating Pressure Differential - Minimum
- 0 psi
- Item
- Solenoid Valve
- Electrical Connections
- Conduit
- Body Material
- Brass
- Coil Insulation Class
- F
- Coefficient of Volume (Cv)
- 18
- Fluid Temperature - Maximum
- 230°F
- Operating Pressure Differential Water - Maximum
- 100 (AC), 100 (DC)
Description
The GC VALVES S201GF24V5HJ2 is a 2-way pilot-operated solenoid valve suitable for use with air, gas, and water within specified operating conditions. It features a brass body with a diaphragm valve type and operates with a 24V electrical supply. The valve has NPT inlet and outlet connections with a nominal pipe size of 1-1/2 inches and an orifice diameter of 1-1/4 inches. It is rated for a maximum fluid temperature of 230°F and can handle a maximum operating pressure differential of 100 psi for water. The valve includes a coil with Class F insulation and uses conduit electrical connections.
Key Features:
- Valve Type: Differential pressure range: 0–100 psi (water), Diaphragm
- Operation: Pilot Operated
- Flow Capacity: Cv of 18
- Material: Brass body with Viton (FKM) seal
- Connection Type: NPT inlet and outlet
- Nominal Pipe Size: 1-1/2 in
- Orifice Diameter: 1-1/4 in
- Electrical: 24V voltage with conduit connection
- Coil Insulation Class: F
- Maximum Fluid Temperature: 230°F
- Operating Pressure Differential: Minimum 0 psi, Maximum 100 psi (water)
