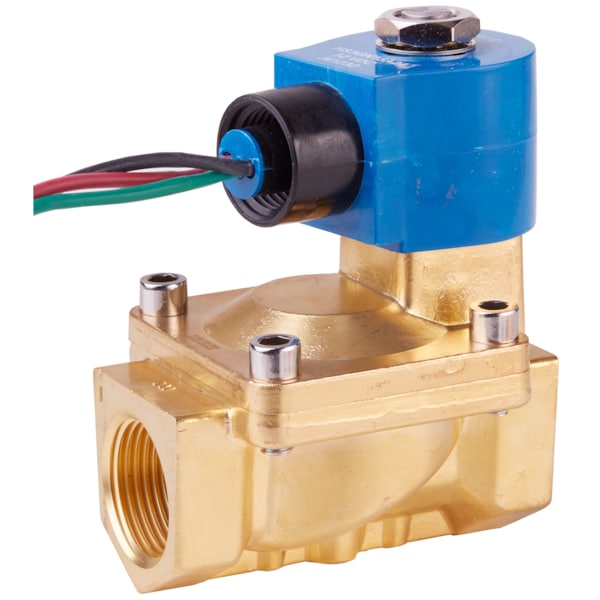

Solenoid Valve, 2-Way, 1 in Pipe Size, 24V DC, Diaphragm, Pilot Operated, Brass, NBR
Mfr # S711GF16N9FG9
Zoro # G4520059
product price:
$
197.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Nominal Pipe Size
1 in
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- S711GF16N9FG9
- Zoro #
- G4520059
- UPC #
- -
- Country of Origin
- United States
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24V DC
- Valve Type
- Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- NBR
- Operating Pressure Differential - Minimum
- 8 psi
- Item
- Solenoid Valve
- Body Material
- Brass
- Coil Insulation Class
- F
- Electrical Connections
- Conduit
- Coefficient of Volume (Cv)
- 13
- Fluid Temperature - Maximum
- 180°F
- Operating Pressure Differential Light Oil - Maximum
- 150 (AC), 100 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 200 (AC), 150 (DC)
- Operating Pressure Differential Water - Maximum
- 150 (AC), 100 (DC)
Description
The GC VALVES S711GF16N9FG9 is a pilot operated, 2-way diaphragm solenoid valve with a brass body designed to control the flow of air, gas, water, and light oil. It operates using an energized coil to move a diaphragm that opens or closes a flow path, enabling automated flow regulation. The valve features a 1 inch nominal pipe size and orifice diameter. Minimum differential pressure required for actuation: 8 psi.
Key Features:
- Body Material: Brass
- Valve Type: Diaphragm
- Valve Ways: 2-Way
- Nominal Pipe Size: 1 in
- Orifice Diameter: 1 in
- Fluid Compatibility: Air, Gas, Water, Light Oil
- Maximum Fluid Temperature: 180°F
- Operating Pressure Differential: Minimum 8 psi; Maximum 200 psi (Air/Inert Gas), 150 psi (Water, Light Oil)
- Seal Material: NBR (Buna-N)
- Electrical Connections: Conduit
- Coil Insulation Class: F
- Voltage: 24V DC
- Inlet/Outlet Connection Type: NPT
