Solenoid Valve, 2-Way, 1/2 in Pipe Size, 24V/50V to 60V, Zero Differential, Diaphragm, Brass

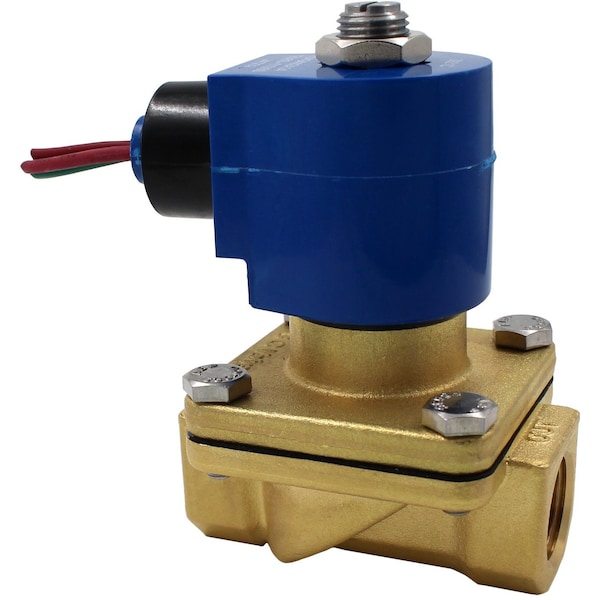

The GC VALVES S201GF24V5DG4 is a pilot operated solenoid valve designed to control the flow of air, gas, light oil, and water through a 1/2-inch nominal pipe size. Constructed with a brass body, it features a diaphragm valve type that operates with a 5/8-inch orifice diameter, providing a flow coefficient (Cv) of 4.3. This valve supports a zero differential function and offers two-way flow control with NPT inlet and outlet connections. The coil has an insulation class F rating, rated for operation within the specified voltage ranges: 24V DC or 50-60V AC. Maximum fluid temperature: 230°F.

Key Features:

• Body Material: Brass
• Operation Type: Pilot Operated
• Valve Type: Zero Differential, Diaphragm
• Valve Ways: 2-Way
• Nominal Pipe Size: 1/2 in
• Orifice Diameter: 5/8 in
• Coefficient of Volume (Cv): 4.3
• Fluid Compatibility: Air, Gas, Water, Light Oil
• Maximum fluid temperature: 230°F
• Seal Material: Viton (FKM)
• Inlet and Outlet Connection Type: NPT
• Electrical Connections: Conduit
• Coil Insulation Class: F
• Voltage: 24V DC; 50-60V AC/DC
• Operating Pressure Differential Maximum: 140 psi Water/Air (AC), 90 psi Water/Air (DC), 90 psi Light Oil (AC), 70 psi Light Oil (DC)
• Operating Pressure Differential Minimum: 0 psi
