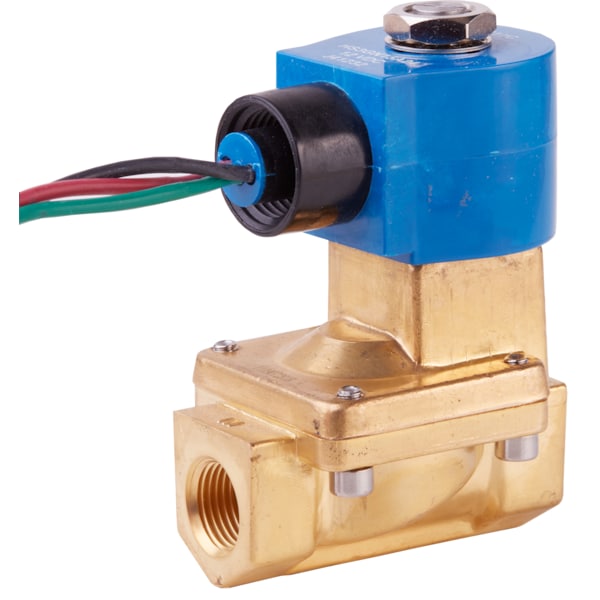

Solenoid Valve, 2-Way, 1/2 in Pipe Size, 24VDC, Diaphragm, Pilot Operated, Brass, NBR
Mfr # S711GF16N9DG1
Zoro # G4520339
product price:
$
131.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Nominal Pipe Size
1/2 in
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- S711GF16N9DG1
- Zoro #
- G4520339
- UPC #
- -
- Country of Origin
- United States
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24VDC
- Valve Type
- Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- NBR
- Operating Pressure Differential - Minimum
- 8 psi
- Item
- Solenoid Valve
- Coil Insulation Class
- F
- Body Material
- Brass
- Electrical Connections
- Conduit
- Coefficient of Volume (Cv)
- 4.3
- Fluid Temperature - Maximum
- 180°F
- Operating Pressure Differential Light Oil - Maximum
- 150 (AC), 100 (DC)
- Operating Pressure Differential Water - Maximum
- 150 (AC), 100 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 200 (AC), 150 (DC)
Description
The GC VALVES S711GF16N9DG1 is a pilot operated solenoid valve that controls flow of air, gas, light oil, and water within pneumatic or hydraulic systems, within the device's rated pressure and temperature ranges. It features a brass body and utilizes a diaphragm valve type to regulate fluid passage. The valve provides automated, remote actuation through an energized coil, with maximum fluid temperature: 180°F. It connects via 1/2 inch NPT inlet and outlet fittings and operates at a nominal pipe size of 1/2 inch.
Key Features:
- Body Material: Brass
- Valve Type: Diaphragm
- Operation Type: Pilot Operated
- Nominal Pipe Size: 1/2 in
- Orifice Diameter: 1/2 in
- Valve Ways: 2-Way
- Seal Material: NBR
- Electrical Connections: Conduit
- Coil Insulation Class: F
- Voltage: 24 VDC
- Maximum fluid temperature: 180°F
- Coefficient of Volume (Cv): 4.3
- Minimum Operating Pressure Differential: 8 psi
- Maximum Operating Pressure Differential: 200 psi (air/inert gas), 150 psi (light oil and water)
