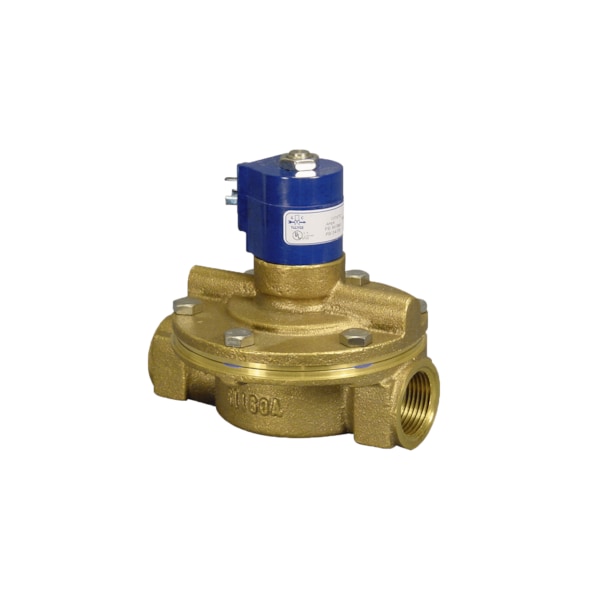

Solenoid Valve, 2-Way, 2 in Pipe Size, 24VDC, Diaphragm, Pilot Operated, Brass, PTFE
- Mfr # S211YF16T2JJ5
- Zoro # G4520427
Key Features
Specifications
Product Information
- MFR #
- S211YF16T2JJ5
- Zoro #
- G4520427
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 2 in
- Orifice Diameter
- 1-1/2 in
Details
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24VDC
- Valve Type
- Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- PTFE
- Operating Pressure Differential - Minimum
- 5 psi
- Item
- Solenoid Valve
- Coil Insulation Class
- F
- Electrical Connections
- DIN
- Body Material
- Brass
- Coefficient of Volume (Cv)
- 28
- Fluid Temperature - Maximum
- 230°F
- Operating Pressure Differential Light Oil - Maximum
- 85 (AC), 85 (DC)
- Operating Pressure Differential Water - Maximum
- 150 (AC), 150 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 200 (AC), 150 (DC)
Description
The GC VALVES S211YF16T2JJ5 is a 2-way solenoid valve featuring a diaphragm valve type with a brass body construction. It operates using a pilot-operated mechanism to control fluid flow remotely and automatically through an orifice diameter of 1-1/2 inches. The valve is designed to handle air, gas, water, and light oil media, with maximum fluid temperatures up to 230°F. It connects via NPT inlet and outlet fittings and is rated for operation with a flow coefficient (Cv) of 28, allowing flow control of liquids or gases through the system.
Key Features:
- Body Material: Brass
- Valve Type: Diaphragm
- Operation Type: Pilot Operated
- Valve Ways: 2-Way
- Orifice Diameter: 1-1/2 in
- Inlet/Outlet Connection Type: NPT
- Seal Material: PTFE
- Electrical Connections: DIN
- Coil Insulation Class: F
- Voltage: 24 VDC
- Fluid Media: Air, Gas, Water, Light Oil
- Maximum Fluid Temperature: 230°F
- Flow Coefficient (Cv): 28
- Operating Pressure Differential Minimum: 5 psi
- Maximum Operating Pressure Differential Air/Inert Gas: 200 psi (AC), 150 psi (DC)
- Maximum Operating Pressure Differential Water: 150 psi
- Maximum Operating Pressure Differential Light Oil: 85 psi
