Shop GC VALVES

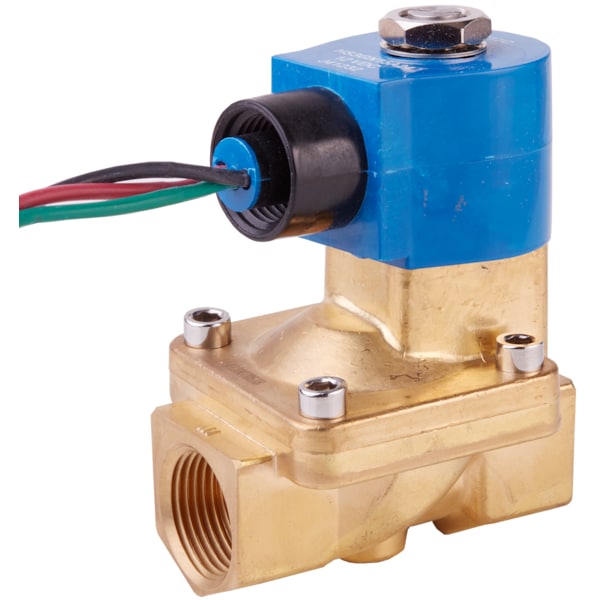

Solenoid Valve, 2-Way, 3/4 in Pipe Size, 24V DC, Diaphragm, Pilot Operated, Brass, NBR

  • Mfr # S711GF16N9EG5

  • Zoro # G4520874

product price:
$
140.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Nominal Pipe Size
3/4 in
Inlet Connection Type
NPT
Outlet Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S711GF16N9EG5
Zoro #
G4520874
UPC #
-
Country of Origin
United States
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Voltage
24V DC
Valve Type
Diaphragm
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Minimum
8 psi
Item
Solenoid Valve
Electrical Connections
Conduit
Body Material
Brass
Coil Insulation Class
F
Fluid Temperature - Maximum
180°F
Coefficient of Volume (Cv)
6.7
Operating Pressure Differential Water - Maximum
150 (AC), 100 (DC)
Operating Pressure Differential Air/Inert Gas - Maximum
200 (AC), 150 (DC)
Operating Pressure Differential Light Oil - Maximum
150 (AC), 100 (DC)

Description

The GC VALVES S711GF16N9EG5 is a 2-way solenoid valve featuring a diaphragm valve type and pilot-operated mechanism. Its brass body construction and NBR seal material are compatible with air, gas, water, and light oil per Media Compatibility: Air, Gas, Water, Light Oil. The valve supports an orifice diameter and nominal pipe size of 3/4 in and uses NPT inlet and outlet connections. It operates at a maximum fluid temperature of 180°F and requires a minimum pressure differential of 8 psi for operation.

Key Features:

  • Body Material: Brass
  • Seal Material: NBR (Buna-N)
  • Valve Type: Diaphragm
  • Operation Type: Pilot Operated
  • Valve Ways: 2-Way
  • Nominal Pipe Size: 3/4 in
  • Orifice Diameter: 3/4 in
  • Inlet and Outlet Connection Type: NPT
  • Media Compatibility: Air, Gas, Water, Light Oil
  • Maximum Fluid Temperature: 180°F
  • Operating Pressure Differential Minimum: 8 psi
  • Maximum Pressure Differential: 200 psi Air/Inert Gas, 150 psi Light Oil, 150 psi Water
  • Coil Insulation Class: F
  • Electrical Connections: Conduit
  • Voltage: 24V DC
  • Flow Coefficient (Cv): 6.7
