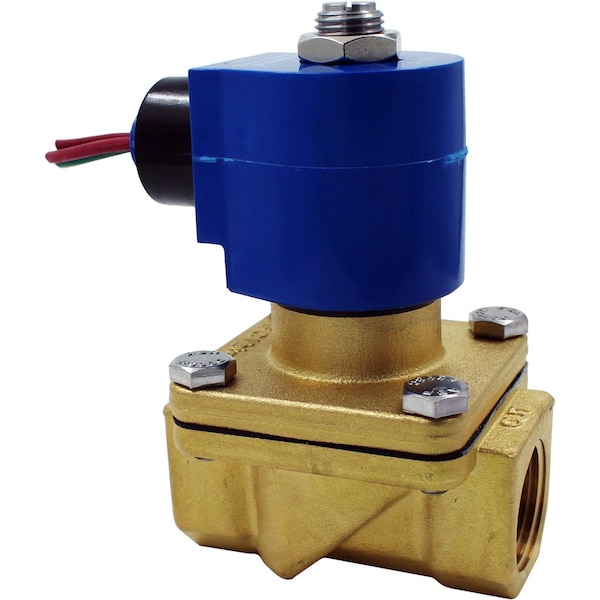

Solenoid Valve, 2-Way, 3/4 in Pipe Size, 24V/50V to 60V, Zero Differential, Diaphragm, Brass
Mfr # S201GF24V5EG5
Zoro # G4520418
product price: $284.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Nominal Pipe Size
3/4 in
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S201GF24V5EG5
- Zoro #
- G4520418
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 3/4 in
- Orifice Diameter
- 3/4 in
Details
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24V/50V to 60V
- Valve Type
- Zero Differential, Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- Viton, FKM
- Operating Pressure Differential - Minimum
- 0 psi
- Item
- Solenoid Valve
- Coil Insulation Class
- F
- Body Material
- Brass
- Electrical Connections
- Conduit
- Coefficient of Volume (Cv)
- 6.7
- Fluid Temperature - Maximum
- 230°F
- Operating Pressure Differential Water - Maximum
- 140 (AC), 90 (DC)
- Operating Pressure Differential Light Oil - Maximum
- 90 (AC), 70 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 140 (AC), 90 (DC)
Description
The GC VALVES S201GF24V5EG5 is a 2-way pilot-operated solenoid valve featuring a brass body and media compatibility: air, gas, water, and light oil. It operates with a coil voltage range of 24V to 60V and includes conduit-style electrical connections. The valve uses a diaphragm mechanism and has a nominal pipe size and orifice diameter of 3/4 inch. It is rated for a maximum fluid temperature of 230°F and employs Viton (FKM) seals for media compatibility.
Key Features:
- Body Material: Brass
- Valve Type: Zero Differential, Diaphragm
- Valve Ways: 2-Way
- Operation Type: Pilot Operated
- Electrical Connections: Conduit
- Coil Insulation Class: F
- Nominal Pipe Size: 3/4 in
- Orifice Diameter: 3/4 in
- Media: Air, Gas, Water, Light Oil
- Maximum Fluid Temperature: 230°F
- Seal Material: Viton, FKM
- Inlet/Outlet Connection Type: NPT
- Cv (Flow Coefficient): 6.7
- Operating Pressure Differential (Maximum): 140 psi (Air/Inert Gas and Water), 90 psi (Light Oil)
- Operating Pressure Differential (Minimum): 0 psi
- Voltage rating: 24 VDC; 50–60 VDC
