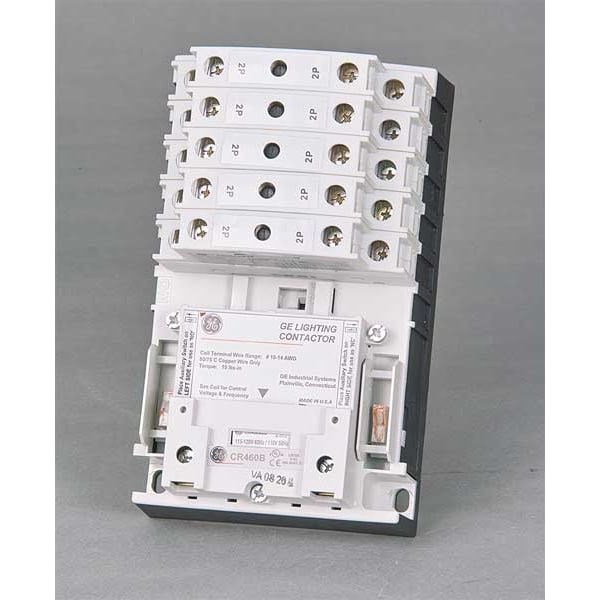

Ge 120VAC Electrically Held Lighting Contactor 10P 30A CR463LB0AJA - main

120VAC Electrically Held Lighting Contactor 10P 30A

  • Mfr # CR463LB0AJA

  • Zoro # G5474585

product price: $969.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Electrically Held
Number of Poles
10
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Height
7.4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463LB0AJA
Zoro #
G5474585
UPC #
783166620731
Country of Origin
Multiple

Dimensions

Height
7.4 in
Width
4.2 in
Depth
3.9 in
Overall Height
7.4 in
Overall Width
4.2 in
Overall Depth
3.9 in

Details

Item
Lighting Magnetic Contactor
Contactor Type
Electrically Held
Number of Poles
10
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Hz
50/60
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 208V
3 hp
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 240V
5 hp
Series
CR460 Series
Number of Normally Open Main Contacts
10
Maximum Operating Temperature
104 Degrees F
Mounting Postion
Vertical
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 240V AC
2 hp
Mounting Style
Surface
Coil Voltage
110/115-120V AC
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
15 hp
Input Control Type
2-Wire
Horsepower @ Three Phase - 240V AC
5 hp
Full Load Current - Inductive
30 A
Horsepower @ Three Phase - 480V AC
10 hp
Contactor Style
Electrically Held Lighting Contactor
Minimum Operating Temperature
-13 Degrees F
Reversing Capability
Non-Reversing
Tungsten Lighting Current Rating
20 A
Fluorescent Lighting Current Rating
30 A
Horsepower @ Single Phase - 120V AC
1 hp
LED Lighting Current Rating
10 A

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 110/115-120V AC, Series CR460 Series, Number of Poles 10, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A
