Shop OMRON

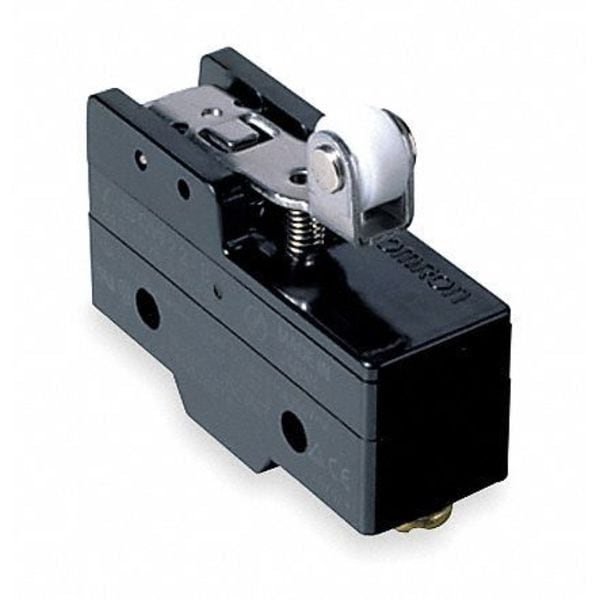

Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GV22-B7-K

  • Zoro # G2138114

product price:
$
16.35
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.03 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A-20GV22-B7-K
Zoro #
G2138114
UPC #
-
Country of Origin
United States

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
1.16 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.03"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.16"
Mounting Dimension
1.00" Centers
Length
1.94"
Depth
0.69"
Body Depth
0.69 in
Body Width
1.94 in
Lever Actuator Length
1.03 in
Overall Depth
0.69 in
Roller Width
0.16 in
Roller Diameter
0.37 in
Overall Width
1.94 in
Body Height
1.16 in
Mounting Hole Diameter
3/16 in
Overall Height
1.16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Differential Travel
0.047 in
Release Force
1.48 ozf
Operating Force
5.6 oz
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
Series
A
Housing Material
Phenolic
Operating Temp. Range
-25 Degrees to 80 Degrees C
Electrical Connection - Snap Action Switch
Screw
Type of Actuator
Short Hinge Roller Lever
Current Rating
20A
Over Travel
0.047 in
Max. Pretravel
0.248 in
Voltage Rating
480VAC
Terminal Type
Screw
Standards
CSA, UL Listed
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 250 V
Roller Adjustability
Fixed
Operating Temperature - Minimum
-13 Degrees F
Roller Material
Plastic
Operating Force - Maximum
1.57 N
Differential Travel - Maximum
0.0472 in
Pretravel
0.248 in
Actuator Style
Roller Lever
Electrical Connection
Screw Terminal
Body Material
Phenolic
Overtravel
0.047 in
Operating Force - Minimum
1.57 N
Operating Temperature - Maximum
176 Degrees F
Roller Position
Outside Offset
Center Mounting Hole Distance
1 in
Mounting Hole Horizontal Center to Center Distance
1 in
Switch Structure
SPDT

Description

Snap Action Switch, Hinge Roller, Lever, Short, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 1.16 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
