  13. 120VAC Electrically Held Lighting Contactor 12P 30A

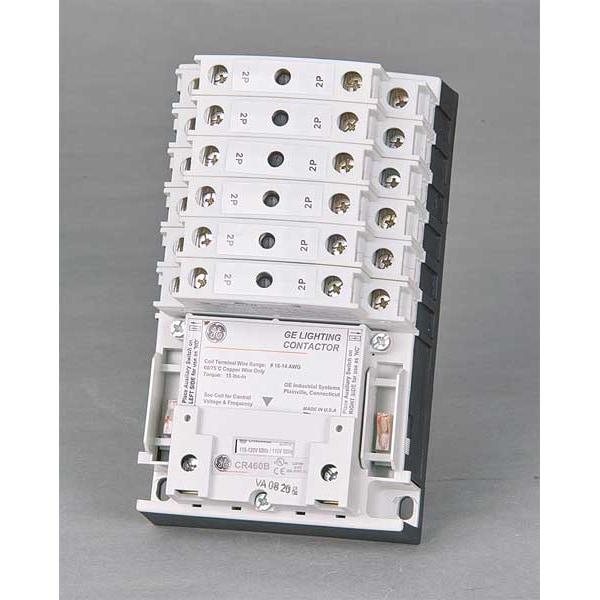

Ge 120VAC Electrically Held Lighting Contactor 12P 30A CR463LD0AJA - main

120VAC Electrically Held Lighting Contactor 12P 30A

  • Mfr # CR463LD0AJA

  • Zoro # G6056321

product price: $1,179.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Electrically Held
Number of Poles
12
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Height
7.4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463LD0AJA
Zoro #
G6056321
UPC #
783166620748
Country of Origin
Multiple

Dimensions

Height
7.4 in
Width
4.2 in
Depth
3.9 in
Overall Height
7.4 in
Overall Width
4.2 in
Overall Depth
3.9 in

Details

Item
Lighting Magnetic Contactor
Contactor Type
Electrically Held
Number of Poles
12
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Hz
50/60
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 240V
5 hp
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 208V
3 hp
Series
CR460 Series
Full Load Current - Inductive
30 A
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 240V AC
5 hp
Mounting Style
Surface
Mounting Postion
Vertical
Tungsten Lighting Current Rating
20 A
Horsepower @ Three Phase - 600V AC
15 hp
Frequency
50/60 Hz
Coil Voltage
110/115-120V AC
Horsepower @ Three Phase - 208V AC
3 hp
Maximum Operating Temperature
104 Degrees F
Input Control Type
2-Wire
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 480V AC
10 hp
Fluorescent Lighting Current Rating
30 A
NEMA Enclosure Rating
No Enclosure
LED Lighting Current Rating
10 A
Number of Normally Open Main Contacts
12
Horsepower @ Single Phase - 240V AC
2 hp
Contactor Style
Electrically Held Lighting Contactor
Horsepower @ Single Phase - 120V AC
1 hp

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 110/115-120V AC, Series CR460 Series, Number of Poles 12, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A
