  13. 120VAC Electrically Held Lighting Contactor 12P 30A

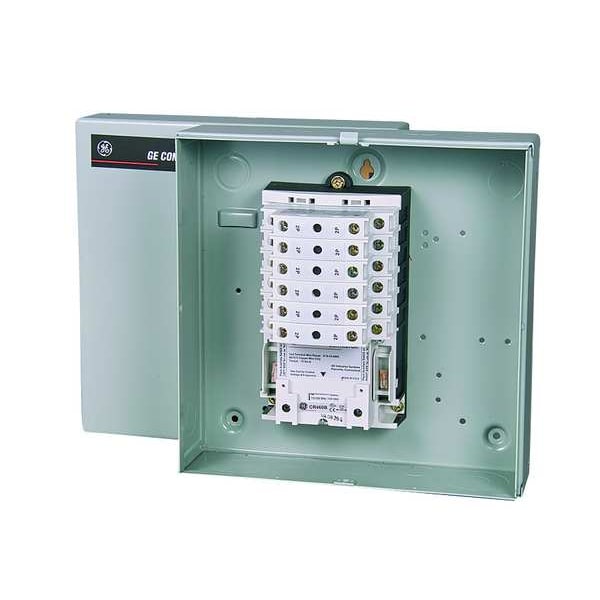

Ge 120VAC Electrically Held Lighting Contactor 12P 30A CR463LD0AJA10A0 - main

120VAC Electrically Held Lighting Contactor 12P 30A

  • Mfr # CR463LD0AJA10A0

  • Zoro # G6056337

product price: $1,249.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Electrically Held
Number of Poles
12
Enclosure NEMA Rating
1
Full Load Amps
30 A
Height
10.0 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463LD0AJA10A0
Zoro #
G6056337
UPC #
783166620892
Country of Origin
United States

Dimensions

Height
10.0 in
Width
10.0 in
Depth
4.63 in
Mounting Hole Distance - Width
8 in
Mounting Hole Distance - Height
8 in
Overall Depth
4.62 in
Mounting Hole Diameter
0.19 in
Overall Width
10 in
Overall Height
10 in

Details

Item
Lighting Magnetic Contactor
Contactor Type
Electrically Held
Number of Poles
12
Coil Volts
120V AC
Enclosure NEMA Rating
1
Full Load Amps
30 A
Hz
50/60
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 240V
5 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 480V
10 hp
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 240V
2 hp
Series
CR460 Series
Horsepower @ Three Phase - 240V AC
5 hp
Phase
Single
Minimum Operating Temperature
-13 Degrees F
Mounting Postion
Vertical
Reversing Capability
Non-Reversing
NEMA Enclosure Rating
1
Horsepower @ Single Phase - 120V AC
1 hp
Fluorescent Lighting Current Rating
30 A
Horsepower @ Three Phase - 208V AC
3 hp
LED Lighting Current Rating
10 A
Number of Normally Open Main Contacts
12
Contactor Style
Electrically Held Lighting Contactor
Input Control Type
2-Wire
Mounting Style
Surface
Full Load Current - Inductive
30 A
Frequency
60 Hz
Tungsten Lighting Current Rating
20 A
Horsepower @ Three Phase - 480V AC
10 hp
Maximum Operating Temperature
104 Degrees F
Horsepower @ Three Phase - 600V AC
15 hp
Coil Voltage
110-120V AC
Horsepower @ Single Phase - 240V AC
2 hp
Maximum Voltage Rating
600V AC

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 110-120V AC, Series CR460 Series, Number of Poles 12, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC
