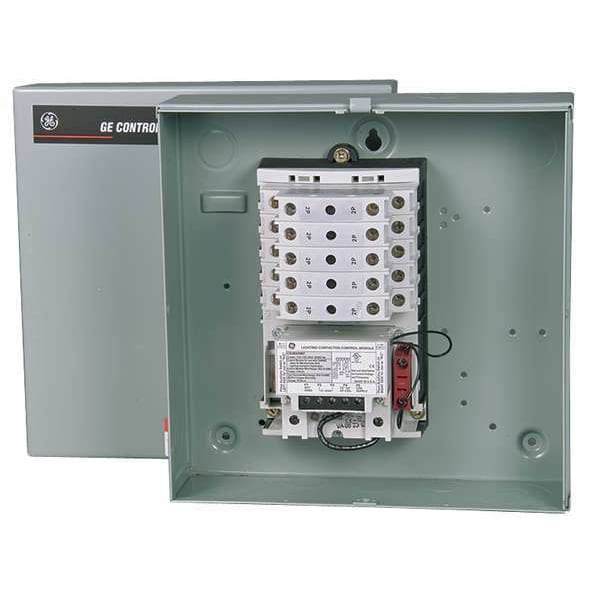

120VAC Mechanically Held Lighting Contactor 10P 30A

  • Mfr # CR463MB0CJA10A0

  • Zoro # G5505647

product price:
$
1,471.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Mechanically Held
Number of Poles
10
Coil Volts
120V AC
Enclosure NEMA Rating
1
Full Load Amps
30 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CR463MB0CJA10A0
Zoro #
G5505647
UPC #
094705355176
Country of Origin
United States
Item
Lighting Magnetic Contactor
Contactor Type
Mechanically Held
Number of Poles
10
Coil Volts
120V AC
Enclosure NEMA Rating
1
Full Load Amps
30 A
Hz
60
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 240V
5 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 575V
15 hp
Series
CR460 Series
Full Load Current - Inductive
30 A
Mounting Postion
Vertical
Minimum Operating Temperature
-13 Degrees F
Tungsten Lighting Current Rating
20 A
Coil Voltage
115-120V AC
Horsepower @ Three Phase - 208V AC
3 hp
Phase
Single
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 240V AC
5 hp
Mounting Style
Surface
NEMA Enclosure Rating
1
Maximum Operating Temperature
104 Degrees F
Horsepower @ Single Phase - 120V AC
1 hp
Contactor Style
Mechanically Held Lighting Contactor
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
15 hp
Frequency
60 Hz
Horsepower @ Three Phase - 480V AC
10 hp
Input Control Type
2-Wire
LED Lighting Current Rating
10 A
Reversing Capability
Non-Reversing
Fluorescent Lighting Current Rating
30 A
Number of Normally Open Main Contacts
10

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 115-120V AC, Series CR460 Series, Number of Poles 10, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC
