  13. 120VAC Mechanically Held Lighting Contactor 6P 30A

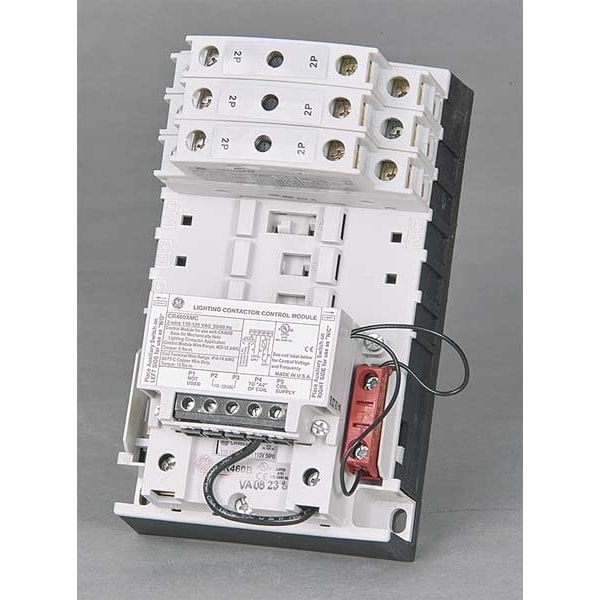

Ge 120VAC Mechanically Held Lighting Contactor 6P 30A CR463M60CJA - main

120VAC Mechanically Held Lighting Contactor 6P 30A

  • Mfr # CR463M60CJA

  • Zoro # G5594136

product price: $886.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Mechanically Held
Number of Poles
6
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463M60CJA
Zoro #
G5594136
UPC #
094705380772
Country of Origin
United States

Dimensions

Height
7.4 in
Width
4.2 in
Depth
3.9 in
Overall Depth
3.9 in
Overall Height
7.4 in
Overall Width
4.2 in

Details

Item
Mechanically Held Lighting Contactor
Contactor Type
Mechanically Held
Number of Poles
6
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Hz
60
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 208V
3 hp
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 240V
5 hp
Series
CR460 Series
Horsepower @ Three Phase - 480V AC
15 hp
Mounting Style
Surface
Horsepower @ Three Phase - 240V AC
5 hp
Input Control Type
2-Wire
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
6
Horsepower @ Single Phase - 120V AC
1 hp
Fluorescent Lighting Current Rating
30 A
Coil Voltage
115-120V AC
Contactor Style
Mechanically Held Lighting Contactor
LED Lighting Current Rating
10 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Three Phase - 600V AC
15 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 240V AC
2 hp
Tungsten Lighting Current Rating
20 A
Full Load Current - Inductive
30 A
Frequency
60 Hz
Mounting Postion
Vertical
Maximum Operating Temperature
104 Degrees F

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 115-120V AC, Series CR460 Series, Number of Poles 6, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A
