  13. 120VAC Mechanically Held Lighting Contactor 6P 30A

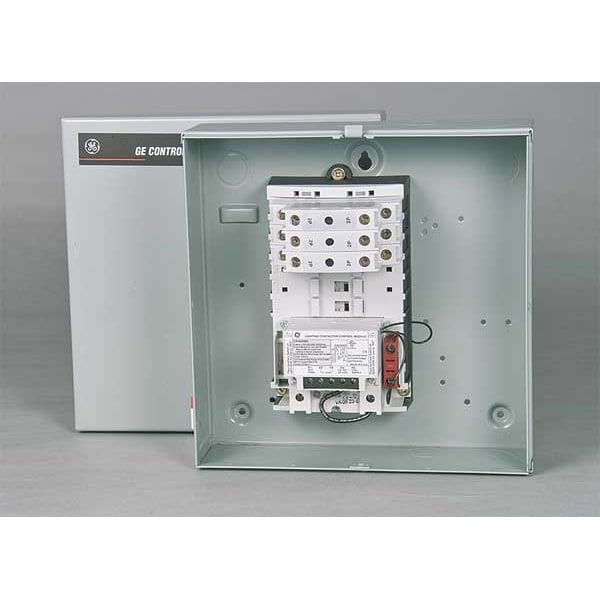

Ge 120VAC Mechanically Held Lighting Contactor 6P 30A CR463M60CJA10A0 - main

120VAC Mechanically Held Lighting Contactor 6P 30A

  • Mfr # CR463M60CJA10A0

  • Zoro # G5734951

product price: $993.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Mechanically Held
Number of Poles
6
Coil Volts
120V AC
Enclosure NEMA Rating
1
Full Load Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463M60CJA10A0
Zoro #
G5734951
UPC #
094705255254
Country of Origin
United States

Dimensions

Height
10.0 in
Width
10.0 in
Depth
4.63 in
Mounting Hole Diameter
0.19 in
Overall Height
10 in
Overall Depth
4.62 in
Overall Width
10 in
Mounting Hole Distance - Width
8 in
Mounting Hole Distance - Height
8 in

Details

Item
Lighting Magnetic Contactor
Contactor Type
Mechanically Held
Number of Poles
6
Coil Volts
120V AC
Enclosure NEMA Rating
1
Full Load Amps
30 A
Hz
60
HP @ 3 Phase - 575V
15 hp
HP @ 1 Phase - 240V
2 hp
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 240V
5 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 480V
10 hp
Series
CR460 Series
Frequency
60 Hz
Reversing Capability
Non-Reversing
Coil Voltage
115-120V AC
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 600V AC
15 hp
Number of Normally Open Main Contacts
6
Horsepower @ Three Phase - 208V AC
3 hp
Mounting Style
Surface
Horsepower @ Three Phase - 240V AC
5 hp
Maximum Operating Temperature
104 Degrees F
Horsepower @ Single Phase - 240V AC
2 hp
Phase
Single
Maximum Voltage Rating
600V AC
Tungsten Lighting Current Rating
20 A
Fluorescent Lighting Current Rating
30 A
Input Control Type
2-Wire
NEMA Enclosure Rating
1
Horsepower @ Three Phase - 480V AC
10 hp
LED Lighting Current Rating
10 A
Full Load Current - Inductive
30 A
Horsepower @ Single Phase - 120V AC
1 hp
Contactor Style
Mechanically Held Lighting Contactor
Mounting Postion
Vertical

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 115-120V AC, Series CR460 Series, Number of Poles 6, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC
