  13. 120VAC Mechanically Held Lighting Contactor 8P 30A

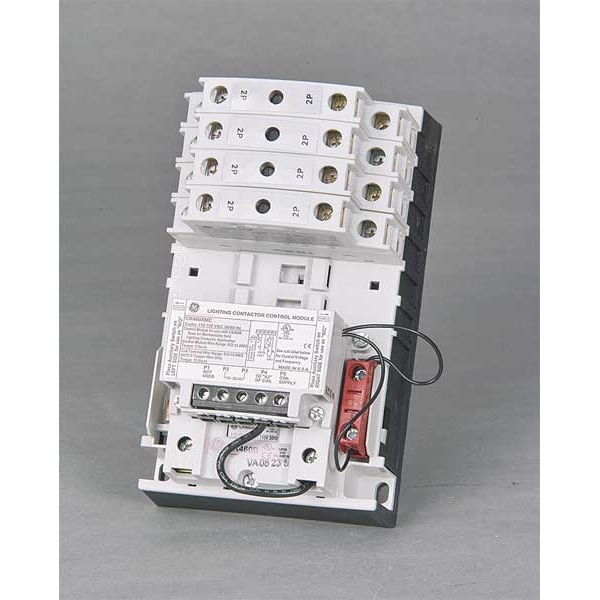

Ge 120VAC Mechanically Held Lighting Contactor 8P 30A CR463M80CJA - main

120VAC Mechanically Held Lighting Contactor 8P 30A

  • Mfr # CR463M80CJA

  • Zoro # G1002714

product price: $1,073.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Mechanically Held
Number of Poles
8
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR463M80CJA
Zoro #
G1002714
UPC #
783166621400
Country of Origin
United States

Dimensions

Height
7.4 in
Width
4.2 in
Depth
3.9 in
Overall Width
4.2 in
Overall Depth
3.9 in
Overall Height
7.4 in

Details

Item
Mechanically Held Lighting Contactor
Contactor Type
Mechanically Held
Number of Poles
8
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Hz
60
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 208V
3 hp
HP @ 1 Phase - 240V
2 hp
Standards
CE, cUL, E1811 Vol 19, UL 508
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 240V
5 hp
Series
CR460 Series
Frequency
60 Hz
Input Control Type
2-Wire
Horsepower @ Three Phase - 480V AC
15 hp
Coil Voltage
115-120V AC
Horsepower @ Single Phase - 120V AC
1 hp
Full Load Current - Inductive
30 A
Number of Normally Open Main Contacts
8
Tungsten Lighting Current Rating
20 A
Mounting Style
Surface
Fluorescent Lighting Current Rating
30 A
Maximum Operating Temperature
104 Degrees F
Mounting Postion
Vertical
LED Lighting Current Rating
10 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Contactor Style
Mechanically Held Lighting Contactor
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
15 hp
NEMA Enclosure Rating
No Enclosure
Reversing Capability
Non-Reversing

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 115-120V AC, Series CR460 Series, Number of Poles 8, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A
