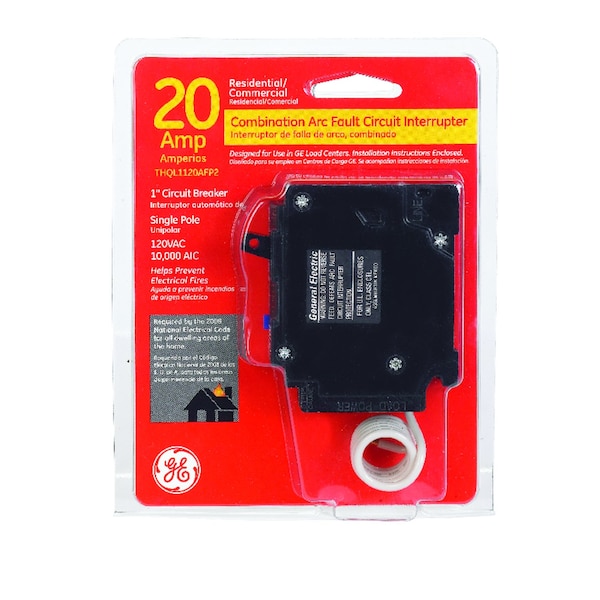

Combination Circuit Breaker, THQL Series, 20A, 1 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # THQL1120AF2A
Zoro # G1749514
product price: $77.15
/ea
Free Shipping & Returns
Key Features
Series
THQL
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
THQL1120AF2A
Zoro #
G1749514
UPC #
7.83165E+11
Country of Origin
Mexico
Dimensions
Frame Size
100A/THQ
Width
1 in
Depth
2-3/8 in
Height
3-9/32 in
Details
Item
Combination Circuit Breaker
Series
THQL
Amps
20A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Screw
DC Voltage Rating
Not Rated
Description
The GE Q-Line 20 amp 1-1/4 inch Single-Pole Arc Fault Combination Circuit Breaker detects arc faults in both parallel and series wiring. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The unit has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The breaker case is made of heat-resistant thermoset for stability and structural integrity.
- • Use to detect and mitigate arc faults in both parallel and series wiring
- • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- • Box-type terminals
- • Calibration screw is cemented to prevent shifting
- • Case is made of heat-resistant thermoset for stability and structural integrity
- • Trips to the center position
