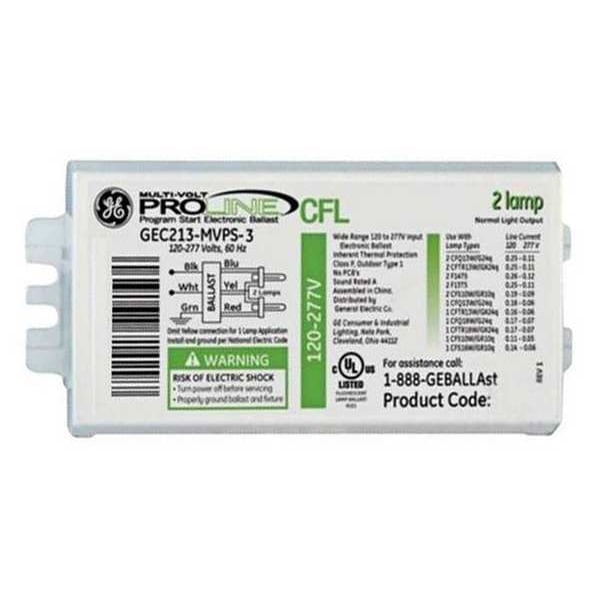

Ge Lighting CFL Ballast, Electronic, 29W, 120/277V GEC213-MVPS-3W - main

CFL Ballast, Electronic, 29W, 120/277V

  • Mfr # GEC213-MVPS-3W

  • Zoro # G2625341

product price: $33.26
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
13
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GEC213-MVPS-3W
Zoro #
G2625341
UPC #
043168714303
Country of Origin
China

Dimensions

Width
2 1/2 in
Length
5 in
Dimension Reference
A38
Height
1 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
13
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Programmed
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
29W
Ballast Factor
1
Min. Starting Temp.
-20 Degrees F
Wiring Type
Series
Light Output
Normal
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item
CFL Ballast
Number of F13BX Lamps
1
Ballast Family
ProLine(R)
Ballast Lamp Watts
13
Number of F18BX Lamps
1
Total Harmonic Distortion
10 %
Power Factor
Greater than or Equal to 0.96
Number of F18DBX Lamps
1
Number of F13DBX Lamps
1
Number of F162D Lamps
1
Fixture Ballast Type
Electronic
Ballast Bulb Type
PL-Q, PL-S, PL-T
Max. Bulb Watts
13 W, 16 W, 18 W
Number of Bulbs Supported
2
Input Voltage
120 to 277V AC
Standards
CSA, FCC Part 18 Class B at 120 volts, UL Class P, UL Listed, UL Type 1 Outdoor, UL Type CC, UL Type HL
CA Title 20 Compliant
No
Brand and Series
ProLine(R)
Max. Operating Temp.
104 Degrees F
Operating Amps @ 120V
0.06 A
Dimming Type
No Dimming
Thermal Protection
Class P
Bulb Base Type
4-Pin (GX24q), (G24q), (2g11)
Dimming Method
No Dimming
Dimming Range
No Dimming
Starter Required
No
Frequency
50/60 Hz
Dimming
No
Lamp Types Supported
(1 or 2) F13DBX, (1 or 2) F13TBX, (1) F18DBX, (1) F18TBX
Voltage
120/277

Description

ProLine(R), Electronic, CFL Ballast, Ballast Start Type Programmed, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, Max. Bulb Watts 13 W, 16 W, 18 W, Ballast Bulb Type PL-Q, PL-S, PL-T, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, CA Title 20 Compliant No, Min. Starting Temp. -20 Degrees F
