Shop GEMS SENSORS

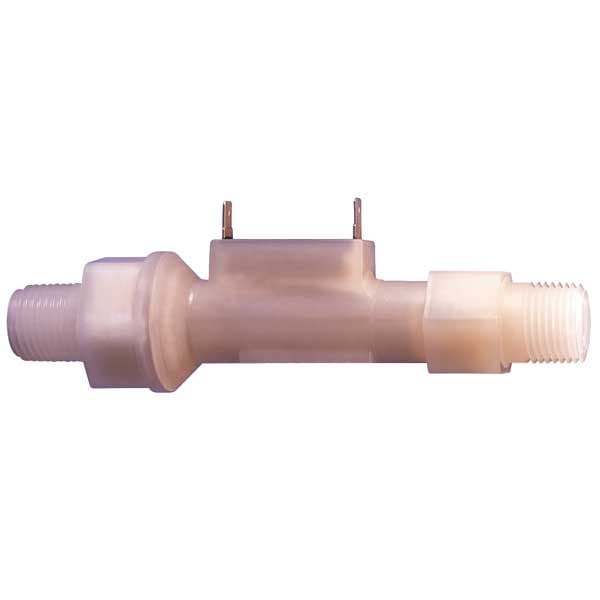

1/2" MNPT SPST NO Liquid Flow Switch AC or DC 2 gpm

  • Mfr # FS-150, NO, 2.0GPM

  • Zoro # G2088301

product price:
$
75.59
/ea

Key Features

Connection Size (In.)
1/2 MNPT
Switch Type
SPST
Voltage
AC or DC
Max. Pressure
200 psi
Max. Pressure (PSI)
150 psi @ 150F to 212F, 200 psi @ 70F to 150F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FS-150, NO, 2.0GPM
Zoro #
G2088301
UPC #
-
Country of Origin
United States
Switch Type
SPST
Voltage
AC or DC
Max. Pressure
200 psi
Item
Liquid Flow Switch
Max. Pressure (PSI)
150 psi @ 150F to 212F, 200 psi @ 70F to 150F
Body Material
Polypropylene
Max. Fluid Temp. (F)
212 Degrees F
Max. Ambient Temp. (F)
212 Degrees F
Flow Rate
2 gpm
For Use With
liquids
Max. HP
Not Available
Switch Enclosure
Polypropylene
Application
Beverage Dispensing and Distilling, Chemical Additives, Conveyors, Gas Sampling, High Speed Spindles, Laser Heads, Machine Tools, Power Supplies, Presses, Robotics, Rotating Equipment, Semiconductor Equipment, Water Purifications and Filtering, Welders, X-Ray Film Processing, X-Ray Tubes
Contact Rating
20VA
Float Switch Contact Form
Normally Open
Min. Fluid Temp. (F)
0 Degrees F
Wetted Materials
316 SS, Polypropylene, Ryton -R4, Viton
Material of Construction
316 SS, Polypropylene, Ryton -R4, Viton
Recommended Filtration (microns)
150 micron
Min. Ambient Temp. (F)
0 Degrees
Type
Piston
Standards
CSA Listed, RoHS, UL Listed
Connection Type
NPT
Media Temperature - Minimum
0 Degrees F
Media Temperature - Maximum
212 Degrees F
Housing Material
Polypropylene
Set Point Configuration
Fixed
Ambient Temperature - Minimum
0 Degrees F
Flow Switch Type
Piston
Contact Rating (DC)
20 V
Switch Position
Normally Open
Filter Rating - Maximum
150 micron
Flow Rate - Maximum
2 gpm
Ambient Temperature - Maximum
212 Degrees F
Wetted Material
Polypropylene

Description

Liquid Flow Switch, Ambient Temperature - Maximum 212 Degrees F, Ambient Temperature - Minimum 0 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 150 micron, Flow Rate - Maximum 2 gpm, Flow Switch Type Piston, Housing Material Polypropylene, Media Temperature - Maximum 212 Degrees F, Media Temperature - Minimum 0 Degrees F, Overall Height 1.9 in, Overall Length 5.9 in, Overall Width 1.3 in, Phase -, Set Point Configuration Fixed
