Generac

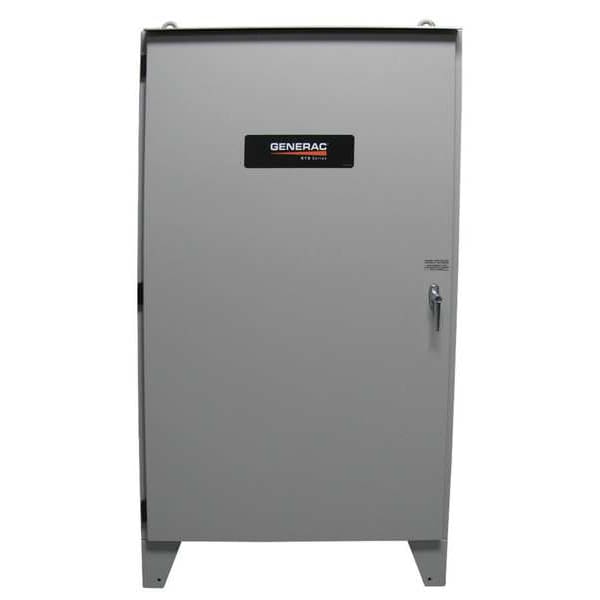

800 Amp Transfer Switch 120/208 3-Phase NEMA 3R CUL
Mfr # RTSN800G3
Zoro # G2123427
product price: $6,760.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.
Free 30-Day Returns
Key Features
- Time Delay Neutral No
- Height 66 in
- For Use With QT07068GNAC, QT07068GVAN, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, QTO7068GNAX, QTO7068GVAC QTO8046GNAX, QTO8046GVAX
- Phase 3
- Max. Wire Size 500 MCM
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options

Product Information

- Brand Generac
- MFR # RTSN800G3
- Zoro # G2123427
- UPC # 696471612059
- Country of Origin United States
- Category Generator & Power Inverter Accessories
Dimensions
Height | 66 in |
Max. Wire Size | 500 MCM |
Depth | 21 in |
Width | 36 in |
Overall Height | 66 in |
Overall Depth | 21 in |
Overall Width | 36 in |
Minimum Wire Size | 4/0 AWG |
Maximum Wire Size | 500 MCM |
Description
Automatic Transfer Switch, Phase Three, Current Rating 800 A, Service Rated Transfer Switch No, Rated Voltage 120/208V AC, Maximum Wattage 150,000 W, Enclosure Material Steel, NEMA Enclosure Rating 3R, Lockable Yes, Compatible with Series RTS, Overall Height 66 in, Overall Width 36 in, Overall Depth 21 in, Automatic Exerciser Yes, Manual Override Yes, Re-Transfer Time Delay 15 sec, Exercise Cycle Duration 12 min, Color Gray, Compatible with Brand Generac, Exercise Cycle Interval 7 day
