Automatic Standby Generator, Natural Gas/Propane, Single Phase, 22kW LP/19kW NG, Air Cooled

  • Mfr # 7043

  • Zoro # G5094769

product price:  $7,572.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Fuel Type
Natural Gas/Propane
Generator Fuel Type
Liquid Propane/Natural Gas
Phase
Single
Amps
91.7/81.3
Rated Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7043
Zoro #
G5094769
UPC #
696471070439
Country of Origin
United States

Dimensions

Height
44 in
Length
48 in
Width
25 in
Engine Size
999 cc
Length (Straight Wireway)
48 in
Overall Width
25 in
Overall Length
48 in
Overall Height
29 in
Fuel NPT Pipe Connection Size
3/4 in

Details

Item
Automatic Standby Generator
Fuel Type
Natural Gas/Propane
Generator Fuel Type
Liquid Propane/Natural Gas
Phase
Single
Transfer Switch Included
Yes
Amps
91.7/81.3
Rated Voltage
240V AC
Generator Voltage
120V AC/240V AC
Engine Cooling
Air
Standby Power Rating
22kW LP/19kW NG
Carbon Monoxide (CO) Sensor
No
CARB Compliant
Yes
Hz
60 Hz
LP Consumption @ Half Load
2.53 gph
Fuel NPT Pipe Connection Sz.
3/4 in
Fault Indicator Lights
Yes
Main Circuit Breaker
Yes
12VDC Battery Charger
Yes
Low Oil Pressure Alarm
Yes
Standards
UL 142/ULC SG01, UL/CUL 2200
Over Crank Protection
Yes
Low Coolant Level Alarm
yes
Sound Level dBA
67 dBA
Min. Gas Pressure @ Generator (In WC)
11 to 14
kW
22 LP/19 NG
kVA Rating
19 kVA, 22 kVA
Automatic Volts Regulation
Yes
Engine RPM
3,600 RPM
Includes
200A Transfer Switch, Composite Mounting Pad, Flexible Fuel Line Connector
NG Consumption @ Half Load
184 cu ft/hr
High Temp. Alarm
Yes
Over Speed Shutdown
Yes
Generator Mfr. Warranty Details
5 yr
Run Time Hour Meter
Yes
Engine Block Heater
Optional
Power Factor
1
Enclosure Material
Aluminum
Battery Included
No
Repeat of Exercise Cycle
7 day
Engine (Block Heater)
Optional
Battery Requirements
26R
Propane (LPG) Consumption @ Full Load
142 cfh
Starter Type
12V DC
Transfer Switch Coverage
Whole House
Manufacturer Warranty
5 yr
Propane (LPG) Consumption @ 1/2 Load
2.53 gph
Safety Features
Automatic Voltage Regulator (AVR), Fault Indicator Lights, High Temperature Alarm, Low Coolant Level Alarm, Low Oil Warning, Over Speed Shutdown, Overcrank Protection, Run Time Hour Meter
Rated Current @ 240V AC - Natural Gas (NG)
81.3 A
Running Wattage - Natural Gas (NG)
19.5 kW
Noise Level
67 dBA
Engine Brand
Generac
Service Rated Transfer Switch
Yes
Includes Battery
No
Natural Gas (NG) Consumption @ Full Load
306 cfh
Transfer Switch Current Rating
200 A
12V DC Battery Charger
Yes
Minimum Fuel Pressure - Natural Gas (NG)
11 in wc
Engine Speed
3,600 RPM
Apparent Power Rating
19 kVA, 22 kVA
Battery Group Number
Group 26R
Maximum Fuel Pressure - Natural Gas (NG)
14 in wc
Exercise Cycle Interval
7 day
Running Wattage - Propane (LPG)
22 kW
Engine Displacement
999 cc
Rated Current @ 240V AC - Propane (LPG)
91.7 A
Natural Gas (NG) Consumption @ 1/2 Load
184 cfh
Wi-Fi Equipped
Yes
Rated Frequency
60 Hz

Description

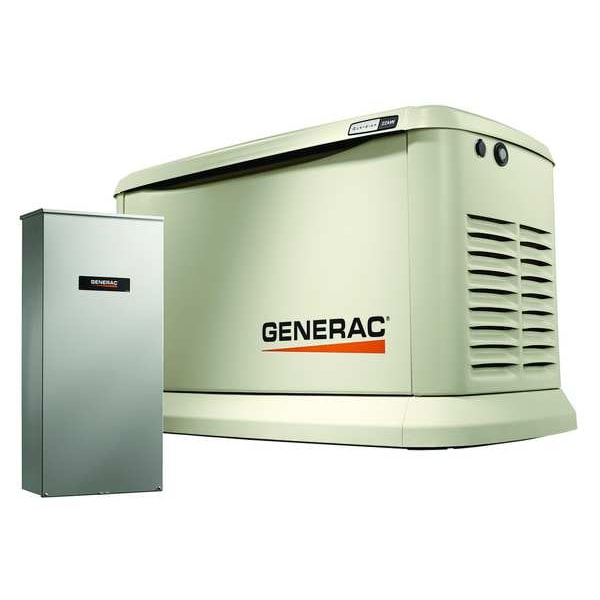

The GENERAC 7043 is an automatic standby generator for single-phase backup power using either natural gas or propane. It delivers 22 kW on propane and 19 kW on natural gas, with 120/240V AC output at 60 Hz. This air-cooled unit includes a 200A transfer switch for whole-house coverage, making it suited for standby power applications where automatic transfer and dual-fuel capability are required.

Key Features of the GENERAC 7043 Automatic Standby Generator:

  • Power output: 22 kW LP / 19 kW NG standby rating; 22 kVA / 19 kVA apparent power rating.
  • Electrical output: Single phase, 120/240V AC, 60 Hz, power factor 1.
  • Rated current: 91.7A on propane and 81.3A on natural gas at 240V AC.
  • Fuel type: Operates on natural gas or propane.
  • Transfer switch included: Includes a 200A service-rated transfer switch for whole-house coverage.
  • Engine: Generac 999 cc engine, air cooled, operating at 3,600 RPM.
  • Controls and monitoring: Automatic voltage regulation, fault indicator lights, run time hour meter, and Wi-Fi capability.
  • Protective functions: High temperature alarm, low coolant level alarm, low oil pressure alarm, overcrank protection, and overspeed shutdown.
  • Fuel connection: 3/4 in NPT fuel pipe connection; natural gas pressure range 11 to 14 in. wc.
  • Fuel consumption: Natural gas consumption is 184 cfh at half load and 306 cfh at full load; propane consumption is 2.53 gph at half load.
  • Construction: Aluminum enclosure with overall dimensions of 48 in L x 25 in W x 29 in H.
  • Included components: 200A transfer switch, composite mounting pad, and flexible fuel line connector.
  • Standards: UL 142/ULC SG01 and UL/CUL 2200.
