  9. Deluxe WBGT Heat Index Monitor, 5-95 Pct

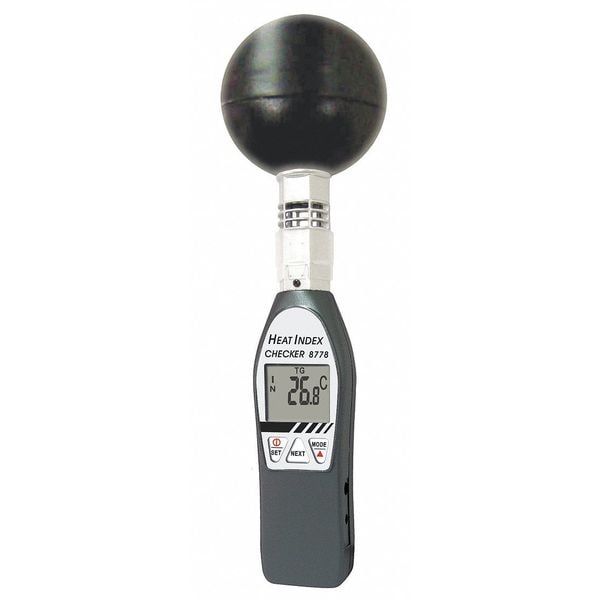

General Tools Deluxe WBGT Heat Index Monitor, 5-95 Pct WBGT8778 - main

Deluxe WBGT Heat Index Monitor, 5-95 Pct

  • Mfr # WBGT8778

  • Zoro # G5201007

product price: $172.79
/ea
Free Shipping & Returns

Key Features

Application
HVAC/R, Medical
Humidity Accuracy
+/-3%
Includes
Operation Manual
Battery Type
(2) AAA
Temp. Range (F)
32 Degrees to 122 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WBGT8778
Zoro #
G5201007
UPC #
681035013083
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Overall Width
75 mm
Black Globe Diameter
2.95 in
Overall Depth
278.2 mm
Overall Height
75 mm
Battery Size
AAA

Details

Item
Deluxe WBGT Heat Index Monitor
Application
HVAC/R, Medical
Humidity Accuracy
+/-3%
Includes
Operation Manual
Battery Type
(2) AAA
Temp. Range (F)
32 Degrees to 122 Degrees
Black Globe Temperature Range
15 Degrees to 40 Degrees C, 59 Degrees to 104 Degrees F
Relative Humidity Range
5% to 95%
Wet Bulb Globe Temperature Range
21 Degrees to 45 Degrees C, 70 Degrees to 115 Degrees F
Display
LCD
Dew Point Range
-85 Degrees to 115 Degrees F (-65 Degrees to 46 Degrees C)
Wet Bulb Temperature Range
70 Degrees to 115 Degrees F (21 Degrees to 45 Degrees C)
Temp. Range (C)
0 Degrees to 50 Degrees
Temp. Accuracy (C)
+/-0.6 Degrees
Temp. Accuracy (F)
+/-0.8 Degrees
Interface
RS-232
Data Logging
Yes
Sensor Type
Brass black ball
Humidity Resolution
0.1 %
Data Hold
No
Response Time
15 sec
IP/NEMA Rating
Not Rated
Wet Bulb Globe Temperature Accuracy
+/-2 Degrees F
Backlit Screen
No
Heat Index Temperature Range
0 Degrees to 50 Degrees C, 32 Degrees to 122 Degrees F
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Meter Type
Black Globe
Includes Mounting Hardware
No
Includes Batteries
Yes
Includes Case
No
Includes AC Adapter
No
Temperature Display Units
Degrees C, Degrees F
Auto Shut-Off
Yes (20 min)
Temperature Range
32 Degrees to 122 Degrees F/0 Degrees to 50 Degrees C
Operating Temperature Range
0 Degrees to 50 Degrees C
Includes Probes
Yes
Temperature Accuracy
+/-0.8 Degrees F/ +/-0.6 Degrees C
Black Globe Temperature Accuracy
+/-1.5 Degrees F/C (Outdoor), +/-1 Degrees F/C (Indoor)
Display Screen Type
LCD
Battery Run Time
1,000 hr
Low Battery Indicator
Yes
Humidity Range
0% to 100%
Audible Alarm
Yes
Operating Humidity Range
0% to 95%
Includes Memory Card
No
Operating Humidity - Minimum
0 %
Heat Index Temperature Measurement - Maximum
122 Degrees F
Ambient Temperature Accuracy
+/-0.8 Degrees F/ +/-0.6 Degrees C
Heat Index Temperature Measurement - Minimum
32 Degrees F
Housing Color
Gray
Wet Bulb Temperature Measurement - Minimum
70 Degrees F
Number of Alarms - Maximum
0
Ambient Temperature Measurement - Maximum
122 Degrees F
Operating Temperature - Minimum
32 Degrees F
Humidity Measurement - Maximum
100 %
Humidity Measurement - Minimum
0 %
Number of Batteries Required
2
Black Globe Temperature Measurement - Maximum
122 Degrees F
Includes Low Battery Indicator
Low Battery Indicator
Operating Humidity - Maximum
95 %
Sampling Rate - Maximum
15 sec
Operating Temperature - Maximum
122 Degrees F
Wet Bulb Temperature Measurement - Maximum
115 Degrees F
Ambient Temperature Resolution
0.1 Degrees F
Mounting Style
Tripod
Ambient Temperature Measurement - Minimum
32 Degrees F
Black Globe Temperature Measurement - Minimum
32 Degrees F

Description

Deluxe WBGT Heat Index Monitor, RH Range 5-95Pct, Temp Range 32-122 Degrees F (0-50C), Wet Bulb Temp Range 70-115 Degrees F (21-45C), Dew Point Range -85 to 115 Degrees F (-65 to 46C), Wet Bulb Globe Temp Range 32-122 Degrees F (0-50C), Black Glove Temp Range 32-176 Degrees F (0-80C), Humidity Accuracy +/-3 Pct of Reading From 10-90Pct RH, +/-5 Pct of Reading Elsewhere, Temp Accuracy +/-0.8 Degrees F (+/-0.6C), Display LCD, Battery Type (2) AAA, Interface RS-232, Includes Batteries, Users Manual
