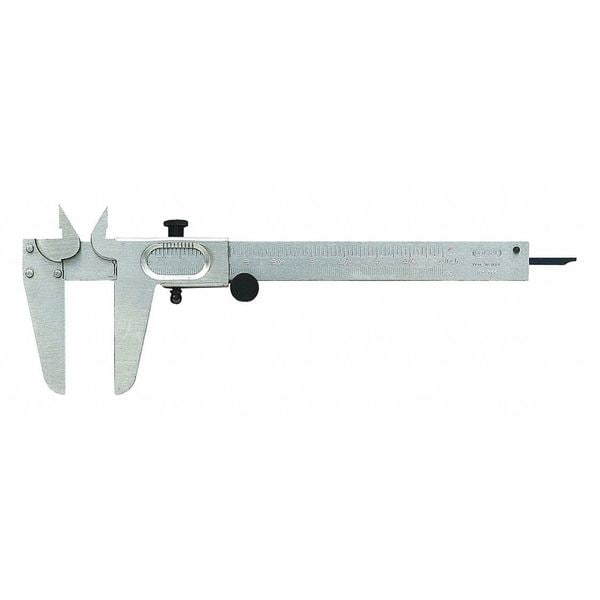

General Tools Vernier Caliper, Steel, 2-9/16" Jaw D 722 - main

Vernier Caliper, Steel, 2-9/16" Jaw D

  • Mfr # 722

  • Zoro # G9583266

product price: $11.49
/ea

Key Features

Range (In.)
0 to 5
Graduations (In.)
1/16
Jaw Depth (In.)
2.56
Material
Steel
Graduations (mm)
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
722
Zoro #
G9583266
UPC #
038728722003
Country of Origin
India

Dimensions

Jaw Depth (In.)
2.56
Jaw Depth
2 9/16 in
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Measures Depth
Yes
Measures Inside Dimension
Yes

Details

Item
4-Way Vernier Caliper
Range (In.)
0 to 5
Graduations (In.)
1/16
Material
Steel
Graduations (mm)
1
Accuracy Rating
+/-0.001 in /0.03mm
Finish
Uncoated
Range (mm)
0 to 125
Measures
Outside, Inside, Depth and Step
Range
0 in to 5 in, 0 mm to 127 mm
Caliper Material
Steel
Graduations - Upper Scale
0.1 mm
Maximum Measurement - Fractional Inch
5 in
Minimum Measurement - Fractional Inch
0 in
Minimum Measurement - mm
0 mm
Maximum Measurement - Decimal Inch
5 in
Accuracy
+/- 0.001 in
Graduations
0.1 mm
Minimum Measurement - Decimal Inch
0 in
Jaw Actuation Type
Thumb Wheel
Measures Step
Yes
With Locking Nut
Yes
Jaw Shape
Standard Jaw
Measurements
4-Way
Maximum Measurement - mm
125 mm
Operation Type
Mechanical
Graduations - Lower Scale
1/128 in
Long Form Calibration Certificate
No
Millimeters Measured - Minimum
0 mm
Measurement Type
Depth, Inside, Outside, Step
Millimeters Measured - Maximum
125 mm
Case Included
No
Inches Measured - Maximum
5 in
Inches Measured - Minimum
0 in

Description

4-Way Vernier Caliper, Range 0 in to 5 in, 0 mm to 127 mm, Graduations 0.1 mm, Accuracy +/- 0.001 in, Caliper Material Steel, Dimension Type Inch/Metric, Graduations - Lower Scale 1/128 in, Graduations - Upper Scale 0.1 mm, Jaw Actuation Type Thumb Wheel, Jaw Depth 2 9/16 in, Maximum Measurement - Decimal Inch 5 in, Maximum Measurement - Fractional Inch 5 in, Maximum Measurement - mm 125 mm, Measurements 4-Way, Measures Depth Yes, Measures Inside Dimension Yes, Measures Outside Dimension Yes
