  11. General Purpose Manual Material Lift, 650 lb Load Capacity, Hand Winch Lift Control
Shop All Platform Lifts
Genie

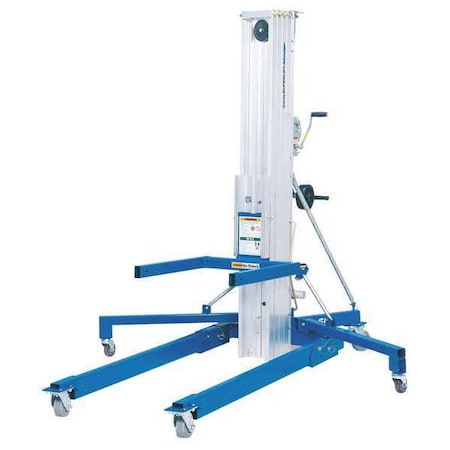

General Purpose Manual Material Lift, 650 lb Load Capacity, Hand Winch Lift Control

product price: $4,282.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Height 78 1/2 in
  • Overall Length 82 in
  • Overall Width 31 1/2 in
  • Color Blue, Silver
  • Load Capacity 650 lb
See all product information

Product Information

Dimensions

Overall Height 78 1/2 in
Overall Length 82 in
Overall Width 31 1/2 in
Platform Length 27 in
Fork Length 27 in
Lifting Height Max. 312 1/2 in
Lifting Height Forks Up 312-1/2"
Base Legs Outside Dia. 31-1/2"
Fork Width 3 in
Manufacturers Warranty Length 1 yr
Lifting Height Forks Down 292 in
Height Stowed 78 1/2 in
Front Wheel Dia. 4 in
Lifting Height Min. 6 in
Rear Wheel Dia. 5 in
Stowed Length 31 in
Stowed Height 78 1/2 in
Base Inside Width 23 1/2 in
Stowed Width 31 1/2 in
Handle Height 47 in
Base Outside Width 31 1/2 in
Minimum Lifting Height 6 in
Width Between Forks 19 1/2 in
Caster Wheel Width 1 1/4 in
Overall Height with Forks Raised 26 ft. 5 in
Lifting Height per Pump 7/8 in
Caster Wheel Dia. 4 in, 5 in
Overall LxWxH 82 in x 31 1/2 in x 24 ft 4 in
Overall Height with Forks Lowered 24 ft. 4 in
Width Across Forks 23 1/2 in
Maximum Lifting Height 26 ft 6 in

Details

Color Blue, Silver
Load Capacity 650 lb
Item General Purpose Manual Material Lift
Assembled Yes
Lift Mechanism Chain/Cable
Lift Control Hand Winch
Caster Wheel Type Tread on Core
Lift Base Style Fixed Straddle
Warranty 5ZZX4
Frame Material Steel
Load Center 18 in
Base Legs Outside Dim. 31 1/2 in
Invertible Forks Yes
Powered By Manual Winch
Base Legs Inside Dim. 23 1/2 in
Base Standard with Stabilizer
Includes Telescoping Mast System and Manual One Speed Winch
Lift Mobility Manual Lift, Manual Push
Weight 450 lb
Standards EC Compliant
Features Winch Locks Load in Place
Non-Marking Casters/Wheels Yes
Frame Finish Powder Coated
Caster/Wheel Configuration (4) Swivel, (2) Swivel with Brake
Non-Marking Axle-Mounted Wheels Yes
Axle-Mounted Wheel/Tread Material Polyurethane
Base Material Steel
Base Type Fixed
Fork Type Invertible
Includes Outriggers With Outriggers
Caster Wheel/Tread Material Plastic
Fork Thickness 2 1/2 in

Description

General Purpose Manual Material Lift, Load Capacity 650 lb, Platform Length 27 in, Maximum Lifting Height 26 ft 6 in, Minimum Lifting Height 6 in, Lift Control Hand Winch, Lift Mechanism Chain/Cable, Fork Length 27 in, Fork Width 3 in, Fork Type Invertible, Frame Material Steel, Base Material Steel, Base Type Fixed, Width Across Forks 23 1/2 in, Width Between Forks 19 1/2 in, Overall Height with Forks Lowered 24 ft. 4 in, Overall Height with Forks Raised 26 ft. 5 in

Restrictions

  • This item has been restricted from sale in the following states: PR
