Shop All Permanent Split Capacitor Blower Motors
Genteq

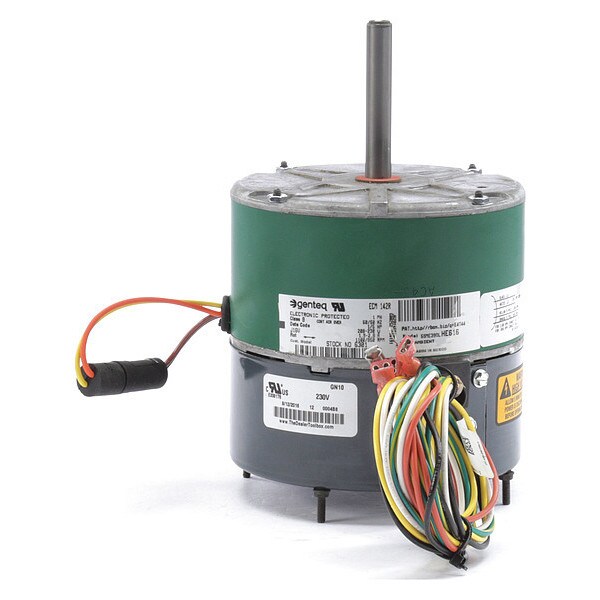

Condenser Fan Motor, 1/5 HP, ECM, 208-230V

product price: $239.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Service Factor 1
  • Body Dia. 5 5/8 in
  • Shaft Dia. 1/2 in
  • Nameplate RPM 1,100/850
  • Resilient Ring Dia. 2 1/2 in
See all product information

Product Information

Dimensions

Body Dia. 5 5/8 in
Shaft Dia. 1/2 in
Resilient Ring Dia. 2 1/2 in
Stud Size #8-32
Manufacturers Warranty Length 1 yr
Length Less Shaft 5 1/2 in
Shaft Length 3 in
Bolt Circle Dia. 5 3/8 in
Overall Length 8 1/2 in
Lead Length 55 in
Mounting Stud Length 1/8 in

Details

Motor Service Factor 1
Item Condenser Fan Motor
Nameplate RPM 1,100/850
Phase Single
Motor Mounting Type Stud
RPM Range 1,001-1,100
Ring to Ring Center 2 1/2 in
Motor Bearings Ball
Voltage Compatibility 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Shaft Rotation CW/CCW
Full Load Amps 2.8 A
Motor Thermal Protection Auto
Motor Mounting Position All Angle
Motor Shaft Design Flat
No. of Speeds 2
Application Condenser Fan
Motor Enclosure Design Totally Enclosed Air-Over
Max. Ambient Temp. 60 Degrees C
Ins. Class B
Motor Application HVAC/R
Motor Sub Application Condenser Fan
Motor Design ECM
Capacitor Required No
Voltage 208-230V AC
Duty Continuous
Mounting Stud Pattern 3 5/8 in x 3 5/8 in
HP 1/5
Hz 60 Hz
Frame 48
Duty Cycle Continuous
Motor Flange Type Non-Ventilated
Standards UL Recongnized
Usable @ 200V No
Weight 11 lb
Features Electronically Protected
Removable Base Yes
Extended Thru-Bolts Yes
Usable @ 208V Yes
Includes Belly Band
Motor Frame Material Steel

Description

Condenser Fan Motor, Single Phase, Motor Design ECM, 1/5 HP, Nameplate RPM 1,100/850, No. of Speeds 2, Voltage 208-230V AC, 2.8 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position All Angle
