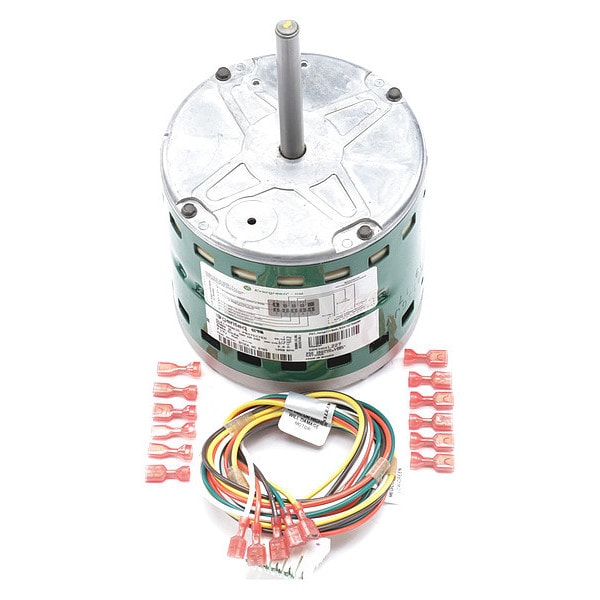

Genteq Direct Drive Blower Motor, 1/3 hp 6703 - main

Direct Drive Blower Motor, 1/3 hp

  • Mfr # 6703

  • Zoro # G3648057

product price: $328.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Direct Drive Fan/Blower
HP
1/3
Output Watts
246 W
RPM Range
1,001-1,100
Voltage
208-230/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6703
Zoro #
G3648057
UPC #
815585023852
Country of Origin
Mexico

Dimensions

Shaft Length
3 15/16 in
Length Less Shaft
5 1/4 in
Overall Length
9 3/16 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Lead Length
42 in

Details

Motor Sub Application
Direct Drive Fan/Blower
HP
1/3
Output Watts
246 W
RPM Range
1,001-1,100
Voltage
208-230/277V AC
Phase
Single
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,075
No. of Speeds
5
Plug Type
1/4 in and 3/8 in Straight Male Quick Connect Terminals
Motor Bearings
Ball
Frame
48
Ins. Class
B
Standards
CSA, UL
Motor Design
ECM
Frame Material
Steel
Motor Thermal Protection
None
Application
Air Handler Systems
Duty
Continuous
Hz
60 Hz
Item
ECM Direct Drive Blower Motor
Voltage Compatibility
208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Ambient Temperature
-40 to 55 Degrees C
Motor Shaft Design
Flat
Full Load Amps
2.8/2.6 A
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Service Factor
1
Capacitor Required
No
Usable @ 200V
No
Duty Cycle
Continuous
Usable @ 208V
Yes
Number of Shafts
1
Weight
11 lb
Finish
Painted
Mounting
Band
Frequency
60/50 Hz
Number of Speeds
5

Description

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 5, Voltage 208-230/277V AC, Full Load Amps 2.8/2.6 A, 48 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection None, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 42 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Mounting Position Horizontal
