  11. Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz
This item is Discontinued.

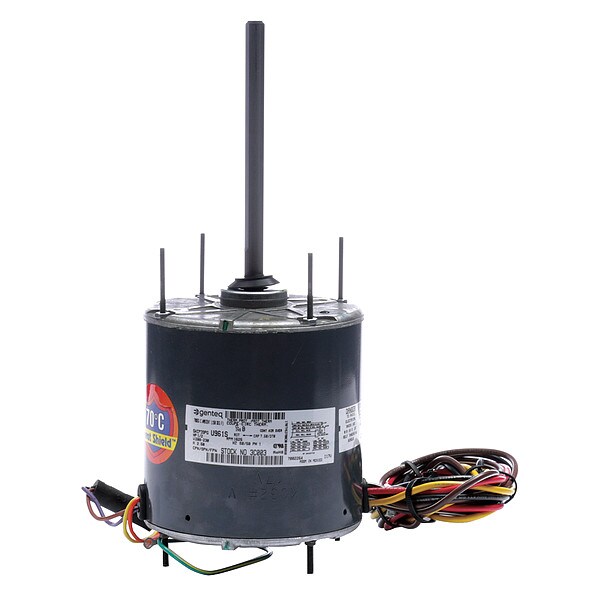

Genteq Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz 3C003

Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz (Discontinued)

  • Mfr # 3C003
  • Zoro # G3689341
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3C003
Zoro #
G3689341
UPC #
815585020943
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
5 3/16 in
Stud Size
#8-32
Shaft Length
6 1/2 in
Length Less Shaft
6 3/16 in
Overall Length
12 11/16 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Lead Length
4 in, 48 in

Details

Capacitor Required
Yes
Voltage
208-230V AC
Item
Condenser Fan Motor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2
Phase
Single
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Sub Application
Condenser Fan
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
70 Degrees C
Motor Application
HVAC/R
Full Load Amps
2.5 A
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Nameplate RPM
1,625
Nominal Efficiency
69 %
Frame
48
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Mounting Position
All Angle
Ins. Class
B
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Duty
Continuous
Stud Quantity
4
RPM Range
1,601-1,700
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Application
Continuous Air-Over
Motor Mounting Type
Stud
No. of Speeds
2
Motor Thermal Protection
Auto
Removable Base
Yes
Usable @ 200V
No
Duty Cycle
Continuous
Features
Thermally Protected
Motor Frame Material
Steel
Weight
18 lb
Motor Flange Type
Non-Ventilated
Includes
Clampbolt, Belly Band
Usable @ 208V
Yes
Extended Thru-Bolts
Yes

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,625, No. of Speeds 2, Voltage 208-230V AC, 2.5 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
