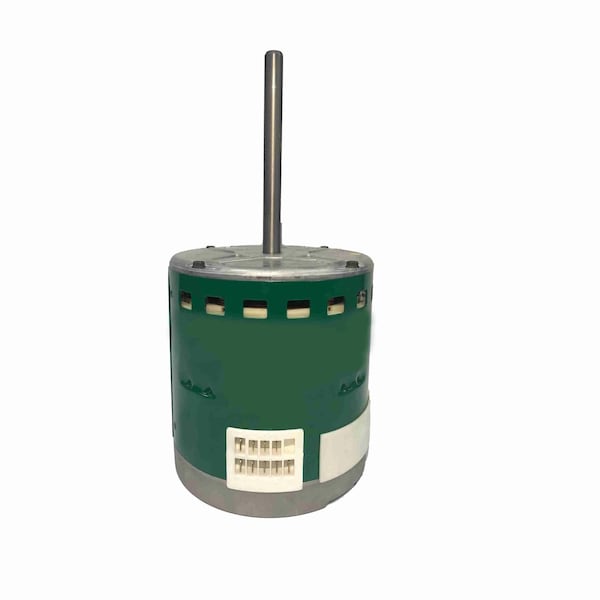

Genteq HVAC Motor, 1/2 hp 6205X - main

HVAC Motor, 1/2 hp

  • Mfr # 6205X

  • Zoro # G811918577

product price:  $452.99
/ea
Free Shipping & Returns

Key Features

Motor Design
ECM
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6205X
Zoro #
G811918577
UPC #
818508028132
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Manufacturers Warranty Length
10 yr
Shaft Length
4 15/16 in
Lead Length
42 in
Overall Length
10 15/16 in
Length Less Shaft
6 in
Body Dia.
5 5/8 in

Details

Item
HVAC Motor
Motor Design
ECM
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
115/208-230V AC
Frame
48
Motor Mounting Type
Round
Phase
Single
Motor Enclosure Design
Open Air-Over
Weight
13.5 lb
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal
Ins. Class
B
Usable @ 200V
Yes
Motor Shaft Rotation
CW/CCW
Usable @ 208V
Yes
Motor Bearings
Ball
No. of Speeds
1
Full Load Amps
6.4/4.1 A
Motor Application
Fan and Blower Motor
Motor Frame Material
Steel
Motor Thermal Protection
No Protection
Voltage Compatibility
115V AC, 208V AC, 230V AC
Motor Sub Application
Direct Drive Fan and Blower
Hz
60 Hz
Number of Shafts
1
Max. Ambient Temp.
104 Degrees F
Motor Service Factor
1

Description

HVAC Motor, 1/2 hp
