  11. Motor, 1/4 HP, OEM Replacement Brand: Carrier/BDP

This item is Discontinued.

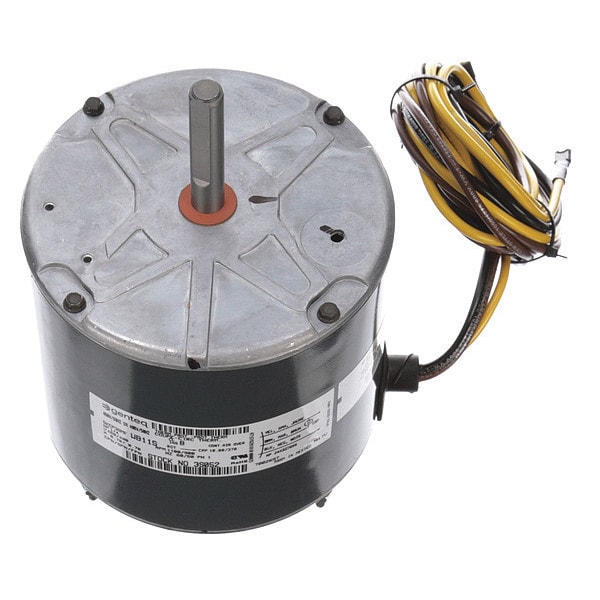

Genteq Motor, 1/4 HP, OEM Replacement Brand: Carrier/BDP 3S052

Motor, 1/4 HP, OEM Replacement Brand: Carrier/BDP (Discontinued)

  • Mfr # 3S052
  • Zoro # G4483796
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3S052
Zoro #
G4483796
UPC #
815585024415
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2-1/2"
Length Less Shaft
5 3/8 in
Bolt Circle Dia.
5-1/5"
Body Dia.
5-5/8"
Manufacturers Warranty Length
1 yr.
Overall Length
7.81"
Stud Size
#8-32

Details

Frame
48
HP
1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1100/900 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
1001-1100
Voltage
460V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous Air Over
Full Load Amps
0.7A
Capacitor Required
2MDV7
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Mounting Stud Pattern
3-5/8" x 3-5/8"
Voltage Compatibility
208-230/460V AC, 460V AC
Usable @ 200V
No
Motor Frame Material
Steel
Weight
15 lb
Motor Mounting Position
Vertical Shaft Down
Usable @ 208V
No
Duty Cycle
Continuous
Rotation
CWLE

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 460V AC, Full Load Amps 0.70/0.70 A, 48 Frame, OEM Replacement Brand Carrier/BDP, Usable @ 208V No, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
