Shop GEORG FISCHER

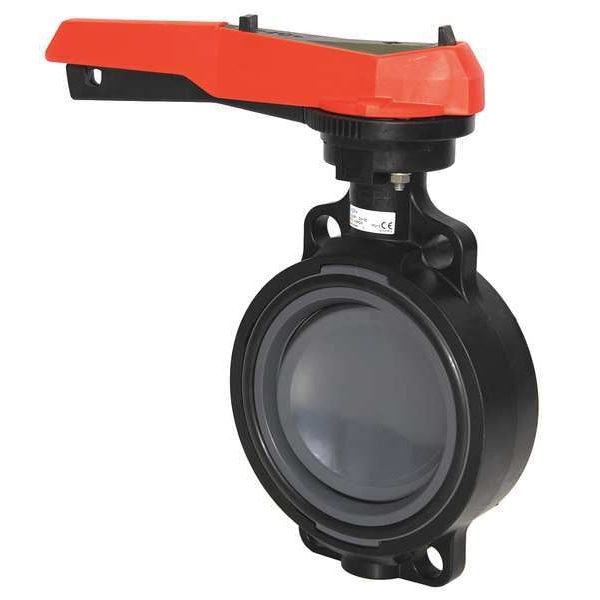

Butterfly Valve, PVC, 5 In

  • Mfr # 161567006
  • Zoro # G4687627

product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
PVC
Pipe Size
5 in
Max. Water Pressure
150 psi
Handle Type
Lever
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
161567006
Zoro #
G4687627
UPC #
-
Country of Origin
Switzerland
Item
Butterfly Valve
Style
Wafer
Body Material
PVC
Max. Water Pressure
150 psi
Handle Type
Lever
Temp. Range
0 Degrees to 140 Degrees F
Standards
ANSI/ASME B 16.5 Class 150, ANSI/BS/JIS, BS 1560: 1989, BS 4504, DIN 2501 PN 10, DN250, DN300, EN 1092 PN 10, EN558, ISO 5752, ISO 7005 PN 10, JIS B 2220
Liner Material
PVC
Disc Material
PVC
Seal Material
EPDM
For Media
Water
Disc Alignment
Concentric
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Manufacturer Warranty
3 yr
Number of Flange Bolt Holes
4
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Operating
145 psi
Operating Temperature - Maximum
140 Degrees F
Connection Type
Wafer
Number of Stop Positions
9
NSF Certifications for Food and Drinking Water
NSF 61
Vacuum Service Rating
Not Rated
ANSI Flange Class
Class 150
Stem Material
316 Stainless Steel
Valve Series
567

Dimensions

Pipe Size
5 in
Bolt Circle Dia.
8 1/2 in
Handle Length
13.74 in
Nominal Valve Size
5 in

Description

Butterfly Valve, Wafer Style, Body Material PVC, Max. Water Pressure 150 psi, Pipe Size 5 in, Temp. Range 0 to 140 Degrees F, Liner Material PVC, Disc Material PVC, Handle Type Lever, Bolt Circle Dia. 8 1/2 in, Standards ANSI/ASME B 16.5 Class 150, ANSI/BS/JIS, BS 1560: 1989, BS 4504, DIN 2501 PN 10, DN250, DN300, EN 1092 PN 10, EN558, ISO 5752, ISO 7005 PN 10, JIS B 2220
