Gf Piping Systems

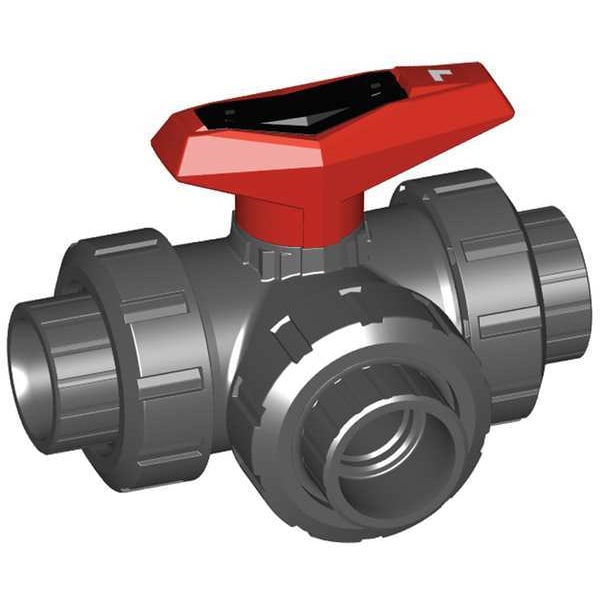

2" Socket PVC Ball Valve 3-Way True Union

product price: $382.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material PVC
  • Body Style 3-Way True Union
  • Standards ASTM 1970-01, ASTM D1784, FDA, USP Class VI
  • Port Full L
  • Handle Type Tee
See all product information

Product Information

Dimensions

Pipe Size 2"
Overall Length 4.16 in
Inlet Connection Size 2 in
Handle Height 117 mm
Outlet Connection Size - Side 2 2 in
Handle Length 152 mm
Outlet Connection Size - Side 1 2 in
Nominal Valve Size 2 in

Details

Body Material PVC
Body Style 3-Way True Union
Standards ASTM 1970-01, ASTM D1784, FDA, USP Class VI
Port Full L
Handle Type Tee
Ball Material PVC
Features Integrated Stainless Steel Mounting Inserts
Max. Pressure 150 psi CWP
Stem Type Blowout Proof
Stem Material PVC
Max. Steam Pressure 0 psi WSP
Seat Material PTFE
Handle Material Glass Filled Polypropylene
Item Ball Valve
Ball Valve Basic Body Material Plastic
Connection Type Socket x Socket x Socket
Temp. Range 32 Degrees to 140 Degrees F
Body Seal Material EPDM
Ball Valve Product Group Manual
Valve Structure 2-Piece
Seal Material PTFE
Type Two Piece, Three Way
Connection Socket
Special Features Actuator Compatible
Sub-Category Synthetic Ball Valves
Material of Construction PVC
Included Mounting Actuator Mounting Pad
Valve Ways 3-Way
Inlet Connection Gender Female
Coefficient of Volume (Cv) 15.4
Color - Valve Handle Orange
Inlet Connection Type Socket
Flow Pattern L Flow
Operating Temperature - Maximum 140 Degrees F
Inlet Connection Entry Side
Maximum Pressure - Operating 145 psi
Handle - Locking Locking
Outlet Connection Gender - Side 2 Female
Ball Port Style Full Port
Outlet Connection Gender - Side 1 Female
Outlet Connection Type - Side 1 Socket
Operating Temperature - Minimum 32 Degrees F
Valve Construction Two-Piece
3-A Standard Compliance Not Rated
Vented Ball Valve Non-Vented
For Media Water
Outlet Connection Type - Side 2 Socket
Maximum Pressure - Steam Not Rated
Maximum Pressure - Combustible Gas Not Rated

Description

Manual Three-Way Ball Valve, Body Material PVC, Valve Construction Two-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 2 in, Inlet Connection Size 2 in, Inlet Connection Gender Female, Inlet Connection Type Socket, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 2 in, Outlet Connection Gender - Side 1 Female
