  11. 3/4" FNPT PVC Ball Valve 3-Way True Union

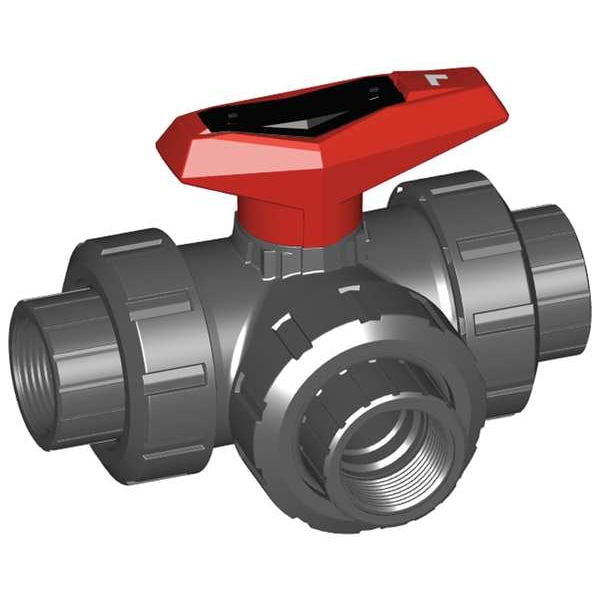

Gf Piping Systems 3/4" FNPT PVC Ball Valve 3-Way True Union 161543103 - main

3/4" FNPT PVC Ball Valve 3-Way True Union

  • Mfr # 161543103

  • Zoro # G1482187

product price: $149.99
/ea
Free Shipping & Returns

Key Features

Ball Material
PVC
Body Style
3-Way True Union
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
161543103
Zoro #
G1482187
UPC #
-
Country of Origin
Switzerland

Dimensions

Pipe Size
3/4 in
Overall Length
5.16 in
Outlet Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in
Handle Length
106 mm
Outlet Connection Size - Side 2
3/4 in
Handle Height
74 mm
Connection Size - Side 1
3/4 in

Details

Ball Material
PVC
Body Style
3-Way True Union
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
FNPT x FNPT x FNPT
Item
Ball Valve
Standards
ASTM D1784, FDA CFR 21 177.2600, USP Class VI
Stem Material
PVC
Max. Pressure
150 PSI CWP
Handle Material
Glass Filled Polypropylene
Handle Type
Lever
Features
Integrated Stainless Steel Mounting Inserts
Seat Material
PTFE
Stem Type
Blowout Proof
Temp. Range
32 Degrees to 140 Degrees F
Body Material
Plastic
Ball Valve Product Group
Manual
Seal Material
EPDM
Type
Two Piece, Three Way
Special Features
Actuator Compatible
Operating Temperature - Maximum
140 Degrees F
Vented Ball Valve
Non-Vented
Outlet Connection Type - Side 1
NPT
Color - Valve Handle
Orange
Inlet Connection Entry
Side
Maximum Pressure - Combustible Gas
Not Rated
Outlet Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
2.1
3-A Standard Compliance
Not Rated
Flow Pattern
L Flow
Included Mounting
Actuator Mounting Pad
Operating Temperature - Minimum
32 Degrees F
Outlet Connection Type - Side 2
NPT
Outlet Connection Gender - Side 2
Female
Handle - Locking
Locking
Maximum Pressure - Steam
0 PSI WSP
Valve Series
543 Pro
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT

Description

Manual Three-Way Ball Valve, Body Material PVC, Valve Construction Two-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 3/4 in, Inlet Connection Size 3/4 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 3/4 in, Outlet Connection Gender - Side 1 Female

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
