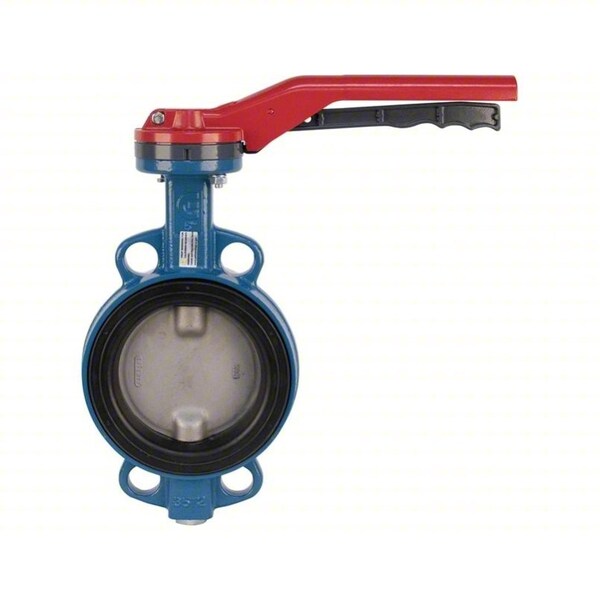

Butterfly Valve, 1.5", Buna-N

Mfr # N500S-1-1/2
Zoro # G016295251

85.89

Key Features

Body Material

Ductile Iron

Handle Type

Lever

Seal Material

Buna-N

Handle Material

Aluminum

Disc Material

Stainless Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: N500S-1-1/2
Zoro #: G016295251
UPC #: -
Country of Origin: Italy

Dimensions

Nominal Valve Size: 1 1/2 in
Handle Length: 8.66 in

Details

Item: Butterfly Valve
Body Material: Ductile Iron
Handle Type: Lever
Seal Material: Buna-N
Handle Material: Aluminum
Disc Material: Stainless Steel
Liner Material: EPDM
Standards: ANSI, API 609, ISO 5211, MSS SP 67, NSF Certified
Stem Material: Stainless Steel
Maximum Pressure - Steam: Not Rated
Operating Temperature - Maximum: 266 Degrees F
NSF Certifications for Food and Drinking Water: NSF 61
Maximum Pressure - Operating: 250 psi
Disc Alignment: Concentric
Vacuum Service Rating: 29 in Hg
Number of Flange Bolt Holes: 4
Connection Type: Wafer
Manufacturer Warranty: 1 yr
Number of Stop Positions: Unlimited
Valve Series: N500S
Average Surface Roughness (Ra): 1.2 micron
ANSI Flange Class: Class 150
Includes Disc Position Indicator: Disc Position Indicator Included
Operating Temperature - Minimum: -30 Degrees F
For Media: Steam, Water
3-A Standard Compliance: Not Rated
Coefficient of Volume (Cv): 104

Description

Butterfly Valve, Body Material Ductile Iron, Liner Material EPDM, Disc Material Stainless Steel, Handle Type Lever, Standards ANSI, API 609, ISO 5211, MSS SP 67, NSF Certified
