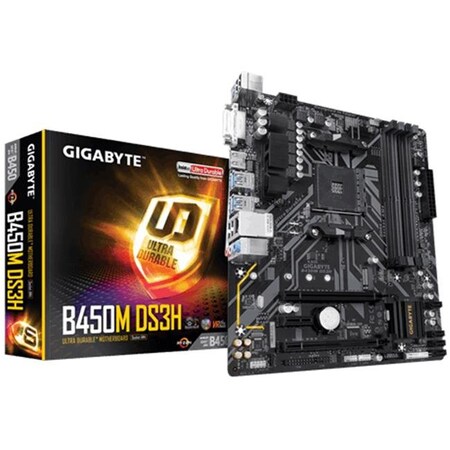

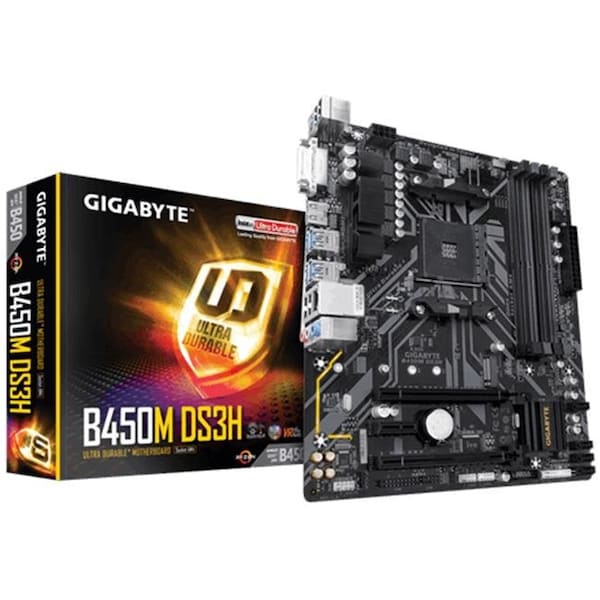

Gigabyte B450M DS3H Motherboard DS3H AMD Ryzen B450 64GB DDR4 DVI-D-HDMI PCI Express Micro ATX

AMD introduces the latest Ryzen 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen 2000 series processors.

• Supports AMD 2nd Generation Ryzen
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• HDMI, DVI-D Ports for Multiple Display
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• RGB Fusion supports RGB LED Strips in 7-Colors
• Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune and Cloud Station Utilities
• CEC 2019 Ready, Save Power with a Single Click

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x CPU cooler LED strip/RGB LED strip header

• 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x HDMI port
• 4 x USB 3.1 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• CPU: AMD Ryzen 2nd Generation processors
• Chipset: AMD B450
• Memory: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Onboard Graphics: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• Audio: Realtek ALC887 codec
• LAN: Realtek GbE LAN chip (10/100/1000 Mbit)
• Storage Interface: 1 x M.2 connector
• USB: 4 x USB 3.1 Gen 1 ports
• I/O Controller: iTE I/O Controller Chip
• BIOS: 1 x 128 Mbit flash
• Operating System: Support for Windows 10 64
