  13. Machine Dolly, 66,000 lb., Steel

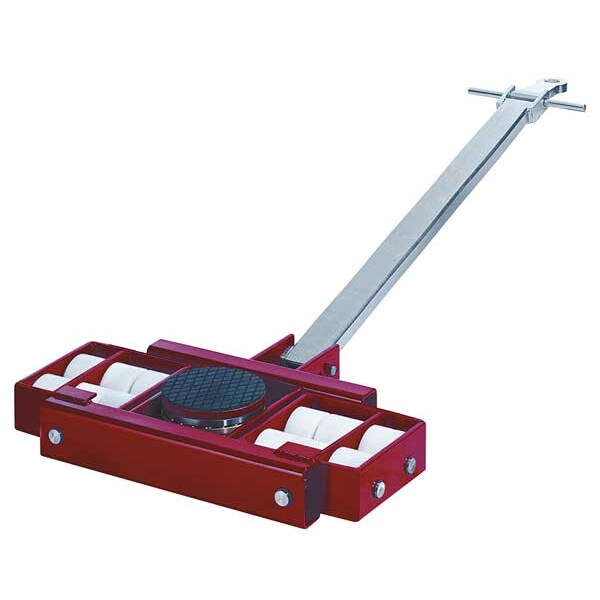

Gks-Perfekt Machine Dolly, 66,000 lb., Steel 3-11993 - main

Machine Dolly, 66,000 lb., Steel

  • Mfr # 3-11993

  • Zoro # G9867681

product price: $8,589.99
/ea
Item requires special delivery charges. A $330.00 per item surcharge will be applied.

Key Features

Color
Red
Load Capacity
66,000 lb
Overall Width
36 1/4 in
Roller Dia.
5 1/2 in
Number of Rollers
12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-11993
Zoro #
G9867681
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
36 1/4 in
Roller Dia.
5 1/2 in
Overall Height
7 1/8 in
Overall Length
29 3/8 in
Top Plate Length
9 7/8 in
Top Plate Width
9 7/8 in
Deck Width
9 7/8 in
Tow Eye Inside Dia.
3 7/8 in
Top Plate Thickness
5/16 in
Roller Width
3 3/8 in
Deck Height
7 1/8 in
Deck Length
9 7/8 in
Top Plate LxW
9 7/8 in x 9 7/8 in
Roller Axle Diameter
1 11/32 in
Deck LxWxH
9 7/8 in x 9 7/8 in x 7 1/8 in
Overall LxWxH
29 3/8 in x 36 1/4 in x 7 1/8 in
Wheel Width
3 5/16 in
Wheel Dia.
5 1/2 in

Details

Item
Front Steerman Machine Roller
Color
Red
Load Capacity
66,000 lb
Number of Rollers
12
Roller Material
Polyamide Blend
Frame Material
Steel
Features
Swivel Plate to Facilitate Steering, All Wheels Are Boxed in For Dent Protection
Caster/Roller Mounting Location
Standard
For Movement Type
Turn/Swivel
Roller Bearing Type
Ball Bearing
Standards
BGV D27, CE, DIN EN ISO 12100, Guideline 2006/42/EC of the European Parliament and the Council dated 17th May 2006, appendix II A
Support Type
Front
Includes
Pulling Handle with Tow Eye
Top Plate Surface
Rubber Padded
Roller Tread Material
Polyamide
Non-Marking Rollers
Yes
Assembled
Partially Assembled
Caster/Roller Configuration
(12) Rollers
Number of Decks
1
Weight
463 lb
Non-Marking Casters/Wheels
Yes
Top Plate Type
Swivel
For Surface Type
Any Surface
Frame Finish
Powder Coated

Description

Front Steerman Machine Roller, Load Capacity 66,000 lb, Deck Length 9 7/8 in, Deck Width 9 7/8 in, Deck Height 7 1/8 in, For Surface Type Any Surface, For Movement Type Turn/Swivel, Top Plate Length 9 7/8 in, Top Plate Width 9 7/8 in, Top Plate Surface Rubber Padded, Top Plate Type Swivel, Caster/Roller Configuration (12) Rollers, Frame Material Steel, Number of Decks 1, Frame Finish Powder Coated, Overall Length 29 3/8 in, Overall Width 36 1/4 in, Overall Height 7 1/8 in
