Duronodic Grade 1 Overhead Concealed Adjustable Door Closer with 105 Degree Swing Radius

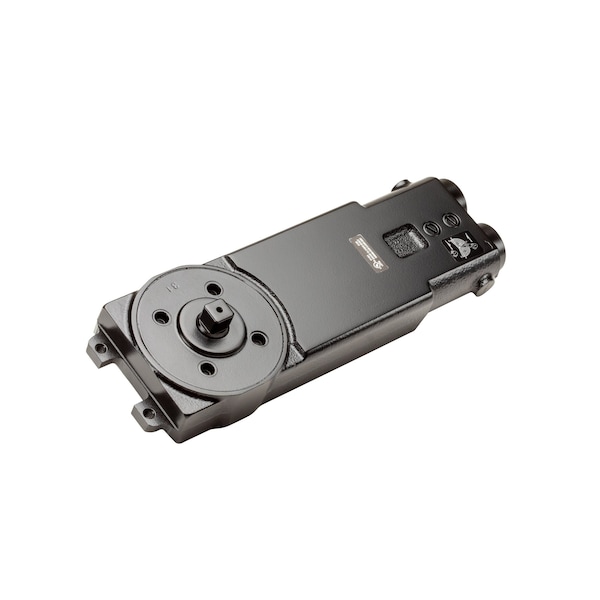

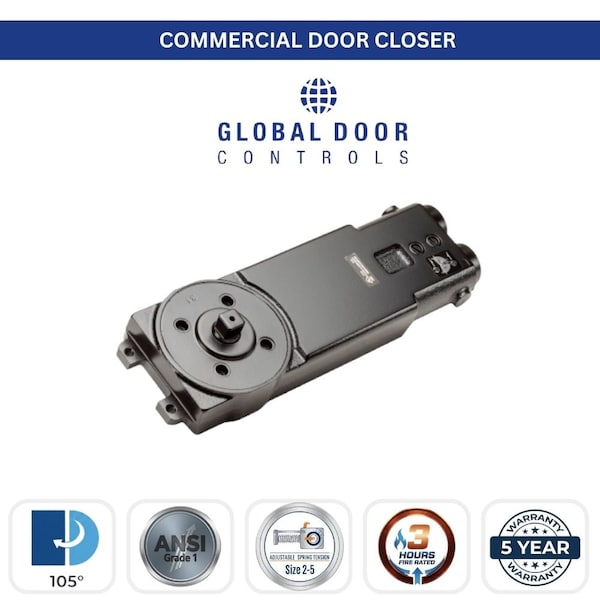

The Global Door Controls TC7011 closers own a compact design that offers an excellent "hidden" solution for those who prefer the visual advantages of a concealed door closer. This type of closers is Grade 1 certified. It has multiple spring tensions available to match any door size and weight. This model features a 105° swing radius with adjustable spring tension. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid. Items are only available in Duronodic finish. They carry a 5 Year mechanical warranty to be the guarantee for our clients.

• •Overhead concealed closer with cast iron housing
• •Adjustable latch & closing speeds
• •Meets the performance standards of Grade 1, ANSI BHMA A156.4
• •Recommended for installation in aluminum door frame applications
• •Center-pivoted for single and double acting doors
• •Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
• •Made from cast iron housing, high tensile steel camshaft and pistons
• •Mounting fits in an aluminum header or transom bar as small as 1-3/4 in. x 4 in.
• •Fits with doors weighing up to 225 lbs.
• •Includes two independent regulated valves for latch and closing speed adjustment
• •Duronodic finish
• •105 degree back stop with non-hold open closer
• •UL R7483
• •ADA compliant
• •5 Year mechanical warranty
