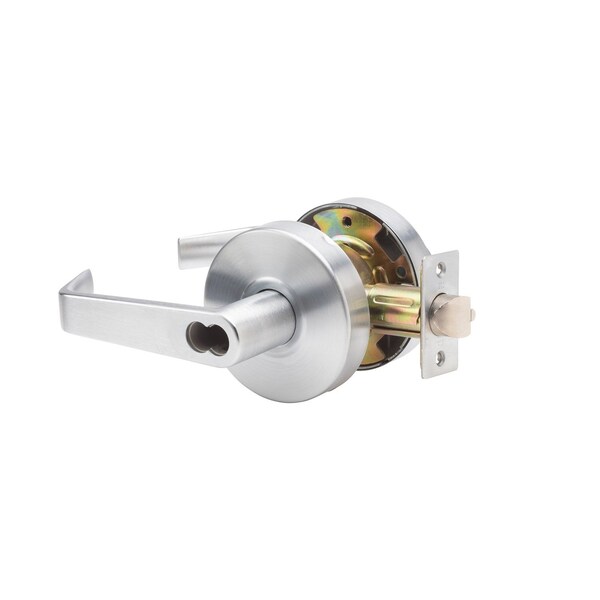

GAL Series Eiffel Style Cylindrical Lever with IC Core, Grade 2 Storeroom in Brushed Chrome
Mfr # GAL-1180L-IC626
Zoro # G408621675
product price:
$
59.65
/ea
Key Features
Electrical/Mechanical
Mechanical
Style
Classic
Lockset Finish
Brushed Chrome
Keyway Type
C
Strike Type
Round Corner
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GAL-1180L-IC626
- Zoro #
- G408621675
- UPC #
- 704780180173
- Country of Origin
- China
Details
- Electrical/Mechanical
- Mechanical
- Style
- Classic
- Lockset Finish
- Brushed Chrome
- Keyway Type
- C
- Strike Type
- Round Corner
- Color
- Chrome
- Backset
- 2-3/4 in
- Number of Keys
- 2
- Features
- Easy Installation
- Includes
- Hardware;Installation Instructions;Self Guiding Screws;Mounting Hardware
- Grade
- ANSI Grade 2 (Better)
- Number of Pins
- 6
- Material
- Steel
- Standards
- ADA Compliant, ANSI Certified, UL Listed
Description
The Global Door Controls GAL cylindrical storeroom leverset comes in a brushed chrome finish and includes an ANSI strike. This storeroom door handle always requires a key to open the door from the outside, the inside remains unlocked. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. The lever is prepared for any small format interchangeable core installation for the storeroom cylinder, but the cylinder itself is sold separately. It includes all necessary hardware and instructions, resulting in an easy installation process.
- •Keyed locking lever automatically locks on the outside if closed
- •ANSI A156.2 Grade 2 Certified
- •Freewheeling clutch lever mechanism for added safety
- •Fits doors with 1-3/8 to 1-5/8 in. thickness
- •Removable Thru-Bolts to prevent lock rotation
- •Non-handed/reversible (fits both right and left-handed doors)
- •Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
- •Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
- •Schlage "C" keyway, includes two 5 pin keys (6 pin capable)
- •Latch: 5/8 in. projection Stainless Steel 3 hour UL R20759
- •Bore: 2-1/8 in. hole retrofits all cylindrical locksets
- •Construction: Steel, Zinc Dichromated resists corrosion
- •ADA compliant
- •1 year mechanical and finish warranty
- •Fits 161 door prep
- •Individual spring on each side prevents lever sag
