STED Series Aluminum Grade 2 Storefront 48 in. Concealed Vertical Rod Narrow Stile Panic Exit Device w/ Mortise Cylinder
Mfr # TH1100-STED48CVR-AL
Zoro # G301861161
Key Features
Specifications
Product Information
Dimensions
Details
Description

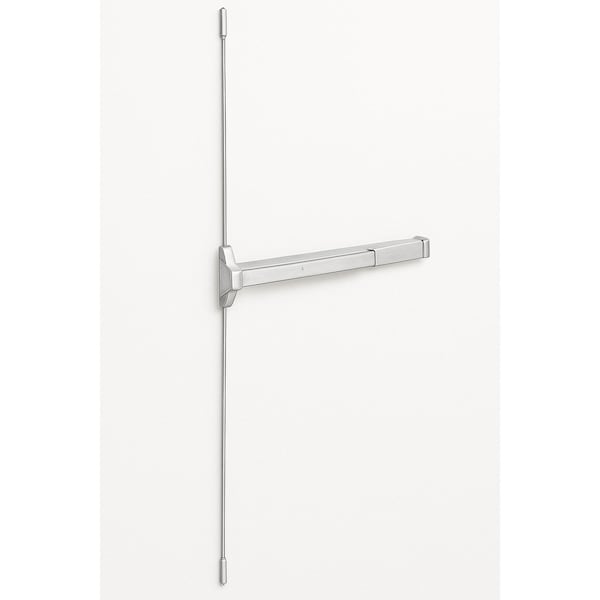

The Global Door Controls STED "Concealed Vertical Rod" narrow stile exit device is suitable for aluminum doors where there's no projection on the surface. It's appropriate for commercial and storefront applications where heavy duty usage is anticipated. It's durable enough for demanding applications. Moreover, it fits with doors up to 48 in. wide and 84 in. in height where a 12 in. extension is available for purchase for taller doors. It comes with a top/bottom latch, mortise cylinder and a cylinder mounting pad with locking ring. These series meet the performance standards of Grade 2 and ADA compliant exit devices. Item is available in Aluminum and Duronodic finishes.
- •Concealed vertical rod narrow stile exit device
- •Compatible with aluminum doors sized 48in. wide
- •Meets the standards of Grade 2 and ANSI A156.3 - Non fire rated
- •Can be used on 30 in. wide doors
- •Suitable with narrow, medium and wide stile aluminum doors
- •Made from anodized aluminum for more durability
- •Comes non-handed / reversible
- •Supplied with mounting hardware
- •Easy to install
- •Door width: 48 in.
- •Door height: 84 in. (7 Ft)
- •12 in. extension rod available for taller doors
- •Top steel toggle latch and bottom steel rod latch bolt
- •Supplied with mortise cylinder and cylinder mounting pad with locking ring
- •Outside unlatching and dogging by cylinder key or dogging by hex key in touch bar
- •Aluminum finish
- •UL listed SA10672 - panic hardware
- •ADA compliant
- •1 Year mechanical and finish warranty
