Shop GOATTHROAT PUMPS

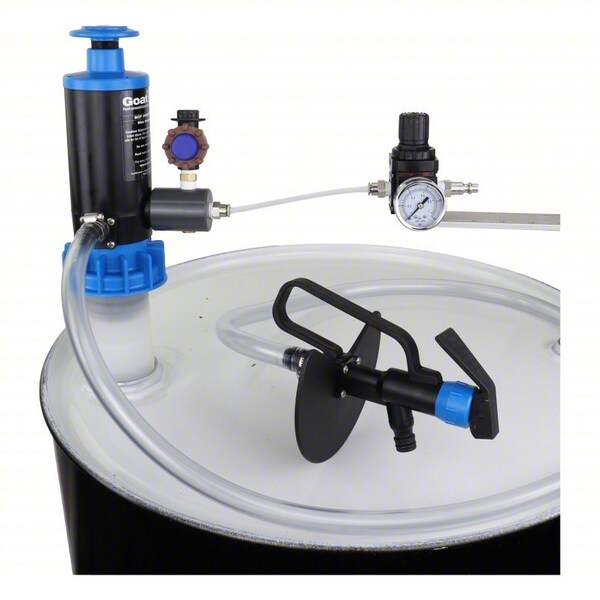

Air Drum Pump, 4.5 gpm, 10 psi, 1:1

  • Mfr # GT200RTBTG-AK

  • Zoro # G621692438

product price:  $799.99
/ea
Free Shipping & Returns

Key Features

For SAE Viscosity Grade - Maximum
40W
Seal Material
EPDM
Includes Discharge Hose
Yes
Maximum Flow Rate
4.5 gpm
Nozzle Operation
Manual
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GT200RTBTG-AK
Zoro #
G621692438
UPC #
030937511515
Country of Origin
United States

Dimensions

Hose Length
60 in
Air Inlet Connection Size
1/4 in
Suction Tube Length
42 in
Adapter Connection Diameter
2 in
For Container Size
15 gal, 30 gal, 55 gal
Air Outlet Size
3/8 in
Hose Inside Diameter
3/8 in

Details

For SAE Viscosity Grade - Maximum
40W
Seal Material
EPDM
Includes Discharge Hose
Yes
Maximum Flow Rate
4.5 gpm
Nozzle Operation
Manual
Discharge Tube Outlet ID
3/8 in
For Container Type
Drum
Suction Tube OD
3/4 in
Container Cover Type Included
No Cover Included
Discharge Tube Outlet OD
5/8 in
Hazardous Location Class
Not Rated
Nozzle Material
Polypropylene
Static Protection
Not Groundable
Maximum Head
10 ft
Maximum Outlet Pressure
10 psi
Maximum Fluid Temperature
120 Degrees F
Includes Bung Adapter
Yes
Includes Nozzle
Yes
Mounting Bracket Included
No Mounting Bracket Included
Pressure Ratio
1:1
Power Source - TS Only
Air
Item
Air Drum Pump
Minimum Air Pressure
2 psi
Duty Cycle
Continuous
Variable Speed
No
Hose Tube Material
TYGON(R)
Housing Material
Polypropylene
Includes Spout
No
Air Inlet Connection Type
FNPT
Discharge Connection Type
Tube
Suction Tube Material
Polypropylene
Adapter Connection Standard
MNPT
Includes
Grease, Intake Tube, O'Ring, PTFE Tape
Meter Type Included
No Meter Included
Maximum Air Pressure
7 psi
Maximum Viscosity
270 cps
Includes Follower Plate
No Follower Plate Included
Wetted Material
EPDM/PP/Tygon
Maximum Head Pressure
3 psi
Pump Technology
Piston
Includes Suction Tube
Yes
Power Source
Air

Description

Air Drum Pump, Spout Connection Size Not Applicable, Suction Tube Material Polypropylene, Discharge Connection Type Tube, Features Not Applicable, Spout Length Not Applicable, Thermal Protection Not Applicable, Air Outlet Size 3/8 in, Air Consumption Not Applicable, Hose Length 60 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level Not Applicable, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout No

Restrictions

This item has been restricted from sale in the following states: CA
