Shop GOATTHROAT PUMPS

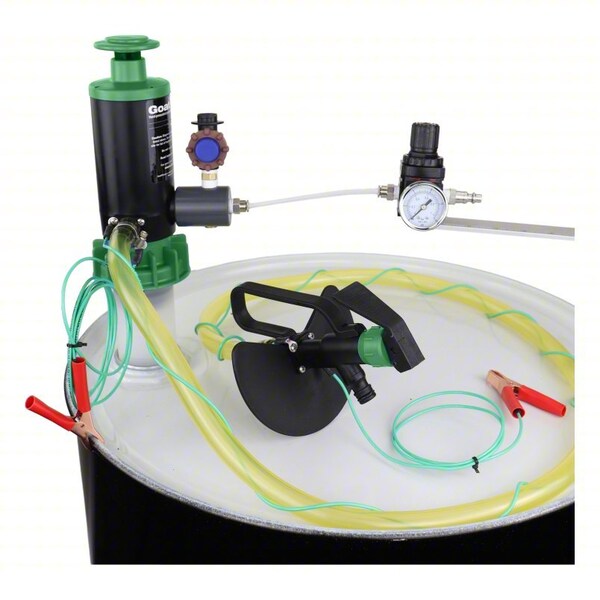

Air Drum Pump, 4.5 gpm, 10 psi, 1:1

  • Mfr # GTSCP300TG-AK

  • Zoro # G621692513


product price:  $1,044.99
/ea
Free Shipping & Returns

Key Features

For SAE Viscosity Grade - Maximum
40W
Hose Tube Material
TYGON(R)
Minimum Air Pressure
2 psi
Maximum Outlet Pressure
10 psi
Suction Tube Length
42 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GTSCP300TG-AK
Zoro #
G621692513
UPC #
030937511638
Country of Origin
United States

Dimensions

Suction Tube Length
42 in
Hose Inside Diameter
3/8 in
For Container Size
15 gal, 30 gal, 55 gal
Hose Length
60 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in

Details

For SAE Viscosity Grade - Maximum
40W
Hose Tube Material
TYGON(R)
Minimum Air Pressure
2 psi
Maximum Outlet Pressure
10 psi
Variable Speed
No
Suction Tube Material
Polypropylene
Housing Material
Polypropylene
Discharge Tube Outlet ID
3/8 in
Suction Tube OD
3/4 in
Hazardous Location Class
Not Rated
Includes Discharge Hose
Yes
Static Protection
Grounding Line Included
Includes Spout
No
Includes Follower Plate
No Follower Plate Included
Duty Cycle
Continuous
Adapter Connection Standard
MNPT
Includes
Grease, Intake Tube, O'Ring, PTFE Tape
Item
Air Drum Pump
Maximum Viscosity
270 cps
Maximum Head
10 ft
Pressure Ratio
1:1
Nozzle Material
Polypropylene
Mounting Bracket Included
No Mounting Bracket Included
Includes Suction Tube
Yes
Maximum Flow Rate
4.5 gpm
Discharge Connection Type
Tube
Includes Nozzle
Yes
Includes Bung Adapter
Yes
Nozzle Operation
Manual
Meter Type Included
No Meter Included
Air Inlet Connection Type
FNPT
Power Source - TS Only
Air
Maximum Head Pressure
3 psi
Maximum Air Pressure
7 psi
Maximum Fluid Temperature
120 Degrees F
Container Cover Type Included
No Cover Included
Discharge Tube Outlet OD
5/8 in
Wetted Material
FKM/PP/Tygon
For Container Type
Drum
Pump Technology
Piston
Power Source
Air

Description

Air Drum Pump, Spout Connection Size Not Applicable, Suction Tube Material Polypropylene, Discharge Connection Type Tube, Features Not Applicable, Spout Length Not Applicable, Thermal Protection Not Applicable, Air Consumption Not Applicable, Hose Length 60 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level Not Applicable, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout No

Restrictions

This item has been restricted from sale in the following states: CA
