Dayton

Hand Drum Pump, Rotary, Cast Iron, 1 In OD

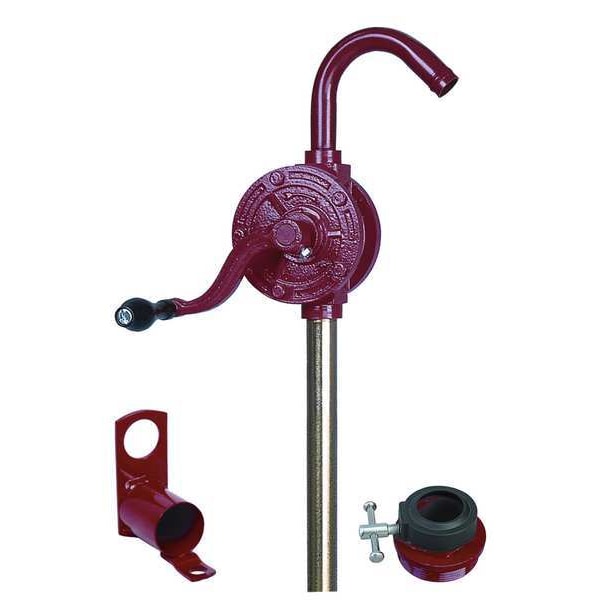

Dayton Hand Drum Pump, Rotary, Cast Iron, 1 In OD 40M295
Tap to zoom
Hover or click to zoom
$90.98
  • Suction Tube Length: 41 in
  • Action Type: Rotary
  • For Media Type: Automatic Transmission Fluid, Diesel Fuel, Kerosene, Motor Oil
See full product details
This item ships free.

Total: $90.98

Dayton #40M295 Specifications

  • Suction Tube Length: 41 in
  • Action Type: Rotary
  • For Media Type: Automatic Transmission Fluid, Diesel Fuel, Kerosene, Motor Oil
  • For Container Size: 15 gal, 30 gal, 55 gal
  • Max. Flow Rate: 8 oz per stroke
  • Max. Viscosity: 5,000 SUS
  • Wetted Materials: Cast Iron, Steel, Viton
  • Max. Fluid Temp.: 140 Degrees F
  • Discharge Tube Outlet ID: 7/8 in
  • Includes: 2 in Bung, Discharge Spout, Pump Body, Rubber Boot, Suction Tube
  • Suction Tube OD: 1 1/4 in
  • Metered: No
  • Discharge Tube Outlet OD: 1 in
  • Includes Suction Tube: Yes
  • Housing Material: Cast iron
  • Discharge Tube Outlet ID Size: 7/8"
  • Ounces per Stroke: 8 oz.
  • Adapter Dia.: 2"
  • Discharge Tube Outlet OD Size: 1"
  • Discharge Tubing Material: Steel
  • Suction Tube Type: 3-Piece Rigid Pipe
  • Seal Material: Viton
  • Application: For Dispensing Diesel, Kerosene, Heating Oils, Motor Oils, Gasoline Lubricating Oils (up to SAE 90), and Other Non Corrosive Media.
  • Pump Body Material: Cast Iron
  • Max. Temp.: 140 Degrees F
  • Max. Liquid Temp.: 140 Degrees F
  • Manufacturers Warranty Length: 1 yr.
  • Adapter Type: 2" Bung with Rubber Boot
  • Overall Length: 50- 7/8"
  • Features: Dual Directional Operation Allows Pump to Empty and Refill Containers
  • Discharge Tube Length: 7"
  • For Use With: For Dispensing Diesel, Kerosene, Heating Oils, Motor Oils, and Other Non Corrosive Media
  • Outlet Size: 1"
  • Item: Hand Operated Drum Pump
  • Inlet Size: 1"
  • Type: Rotary Action
  • Adapter Material: Cast Iron
  • Suction Tube Outlet O.D. Size: 1-1/4"
  • Housing Material - Pumps: Cast Iron
  • Includes Bung Adapter: Yes
  • Includes Spout: Yes
  • For Container Type: Bucket, Drum, Pail
  • Not Recommended Chemicals: Antifreeze (Coolant), Deionized Water, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
  • Compatible Chemicals: Automatic Transmission Fluid, Diesel Fuel, Kerosene, Motor Oil
  • Includes Discharge Hose: No
  • Bung Connection Dia.: 2 in
  • Includes Nozzle: No
  • Power Source: Hand Operated
  • Gear Lube: NT
  • Grease: NT
  • Country of Origin (subject to change): India

Description

Hand Operated Drum Pump, Action Type Rotary, Pump Body Material Cast Iron, Wetted Materials Cast Iron, Steel, Viton, Seal Material Viton, Discharge Tubing Material Steel, For Use On 15 to 55 gal Drums, Max. Temp. 140 Degrees F, Ounces per Stroke 8 oz., Max. Viscosity 5,000 SUS, Inlet Size 1 In., Outlet Size 1 In., Discharge Tube Outlet ID Size 7/8 In., Discharge Tube Outlet OD Size 1 In., Discharge Tube Length 7 In., Suction Tube Length 41 in, Suction Tube Outlet O.D. Size 1-1/4 In.

Restrictions and Compliance

  • WARNING: This product can expose you to chemicals including Lead (inactive), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
