Goodman

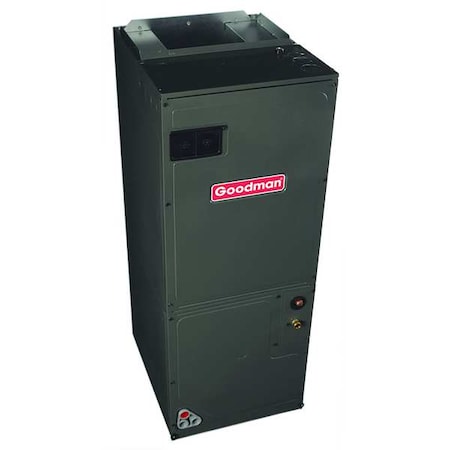

Single Pc Air Handler, Multi-Pos, 2.0 tons

product price: $806.00
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Nominal Capacity (Tons) 2 ton
  • Height (In.) 45 in
  • Width (In.) 17 1/2 in
  • Depth (In.) 21 in
  • Suction Line Size (In.) 3/4 in
See all product information

Product Information

  • Brand Goodman
  • MFR # ARUF29B14
  • Zoro # G7592129
  • UPC #
    663051566224
  • Country of Origin United States
  • Category Air Handlers

Dimensions

Height (In.) 45 in
Width (In.) 17 1/2 in
Depth (In.) 21 in
Suction Line Size (In.) 3/4 in
Supply Opening Depth (In.) 11 5/16 in
Supply Opening Width (In.) 16 13/32 in
Liquid Line Size (In.) 3/8 in
Max. Fuse Size 15
Filter Size 16 in W x 20 in H
Return Air Opening Depth (In.) 19 1/2 in
Manufacturers Warranty Length 10 yr Parts Limited Warranty
Return Air Opening Width (In.) 14 13/32 in
Overall Height 45 in
Overall Width 17 1/2 in
Return Air Opening Width 14 3/8 in
Piston Size 0.05 in
Coil Drain Connection Size 3/4 in
Liquid Line Size 3/8 in
Overall Depth 21 in
Suction Line Size 3/4 in
Manufacturer Warranty Length 10 yr Limited
Return Air Opening Depth 19 1/2 in
Supply Opening Width 16 3/8 in
Supply Opening Depth 11 5/16 in

Details

Nominal Capacity (Tons) 2 ton
Item Single Piece Air Handler
Phase 1
Voltage 208/230
Min. Circuit Amps 3 A
Hz 60
Use with Heater Models HKSC05, HKSC06, HKSC08, HKSC10, HKSC15, Mfr. No. HKSC03
Type Multi-Position
Rated CFM @ 0.5 (in WC) High 965 cfm
Features All-Aluminum Evaporator Coil, Field-Installed Electric Heat Available, Multi-Speed Motor, Smartframe Substructure
Standards AHRI Certified, ETL Listed, ISO 14001, ISO 9001
Nominal Air Capacity 2 ton
Refrigerant Pre-Charged Yes
Nameplate Voltage 208-230V AC
Electric Heater Compatible Yes
Housing Material Finish Galvanized
Number of Speeds 3
Fuse Rating 15 A
Housing Material Aluminum
Coil Connection Type FPT
Maximum Airflow 965 cfm @ 0.5 in wc
Motor Horsepower 1/3 hp
Refrigerant Type R410A
Frequency 60 Hz
Drive Type Direct Drive
Motor Type Permanent Split Capacitor
Current 1.75 A
Discharge Position Multiposition (Up, Down, Horizontal)
Nominal Cooling Capacity (BtuH) 18,000 BtuH
Compatible Heater Manufacturer Part Number HKSC05XC, HKSC08XC, HKSC10XC, HKSX03XC, HKSX05XC, HKSX06XC, HKSX08XC, HKSX10XC
Expansion Device Type Flow Rater
Nominal Cooling Capacity (Tons) 2 ton

Description

Single Piece Air Handler, Nominal Cooling Capacity (Tons) 2 ton, Maximum Airflow 965 cfm @ 0.5 in wc, Nameplate Voltage 208-230V AC, Phase 1, Current 1.75 A, Frequency 60 Hz, Motor Horsepower 1/3 hp, Motor Type Permanent Split Capacitor, Number of Speeds 3, Liquid Line Size 3/8 in, Suction Line Size 3/4 in, Refrigerant Type R410A, Refrigerant Pre-Charged Yes, Expansion Device Type Flow Rater, Supply Opening Width 16 3/8 in, Supply Opening Depth 11 5/16 in, Return Air Opening Width 14 3/8 in

Restrictions

  • This item has been restricted from sale in the following states: AL, AR, AZ, CA, DC, DE, FL, GA, HI, KY, LA, MD, MS, NC, NM, NV, OK, SC, TN, TX, VA, WA
