Shop GOULDS

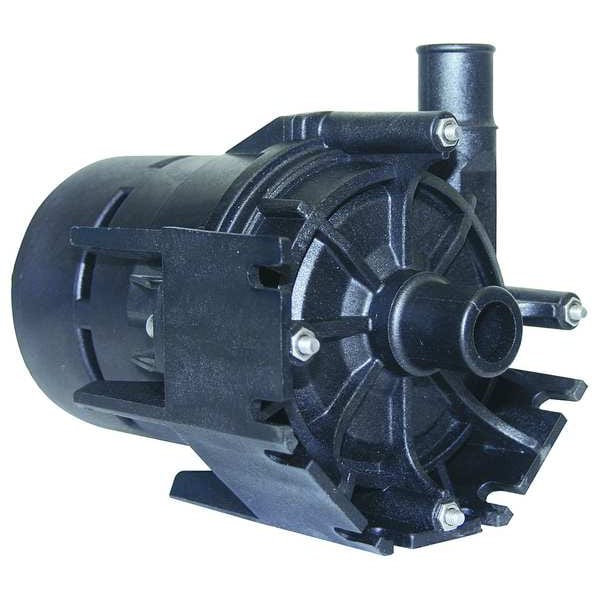

1/25 HP Noryl Canned Motor Centrifugal Pump 115V 3/4 HB

  • Mfr # E10-NSHVNN1W-23
  • Zoro # G1337847
product price:
$
321.99
/ea
Free Shipping & Returns

Key Features

HP
1/25 hp
Housing Material
Noryl
Phase
Single
Voltage
115V
Max. GPM @ Head
10.7 gpm @ 1 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E10-NSHVNN1W-23
Zoro #
G1337847
UPC #
-
Country of Origin
Hungary

Dimensions

Height
4 7/8 in
Width
4 5/16 in
Length
6 in
Manufacturers Warranty Length
1 yr
Overall Height
4.8 in
Intake Pipe Size
3/4 in
Overall Width
4.3 in
Overall Length
6 in
Cord Length
4 ft
Discharge Pipe Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Manufacturer Warranty Length
1 yr

Details

HP
1/25 hp
Item
Centrifugal Pump
Housing Material
Noryl
Phase
Single
Voltage
115V
Max. GPM @ Head
10.7 gpm @ 1 ft
Max. Head
22 1/2 ft
Best Efficiency GPM @ Head
6.6 gpm @ 11.5 ft
Inlet
3/4 HB
Outlet
3/4 in HB
GPM of Water @ 2 Ft. of Head
10.4
GPM of Water @ 10 Ft. of Head
7.3
GPM of Water @ 3 Ft. of Head
10.1
GPM of Water @ 15 Ft. of Head
4.6
Includes
Power Cord
Port Rotation
CCW
Impeller Type
Semi Open
Volute Material
Noryl
Max. Pressure
29 psi
Drain Plug
No
GPM of Water @ 7 Ft. of Head
8.8
Wetted Materials
316 Stainless Steel, CarboN/Allumina Ceramic, EPDM, Noryl, Viton
GPM of Water @ 1 Ft. of Head
10.7
Duty
Continuous
Motor RPM
3,100 RPM
Max. Liquid Temp.
140 Degrees F
Hz
50/60 Hz
Best Efficiency Range GPM @ Head
4 gpm @ 16 to 8 gpm @ 8.70 ft
Application
Water Circulation/Liquid transfer
Max. Fluid Viscosity
30 cps
GPM of Water @ 5 Ft. of Head
10.1
Motor Type
Spherical
GPM of Water @ 9 Ft. of Head
7.8
Cord
4 ft
GPM of Water @ 20 Ft. of Head
1.8
Min. GPM @ Head
1 gpm @ 21 ft
Bearing Type
Ceramic
Impeller Material
Noryl
Amps
0.6
Flow Rate @ 20 ft of Head (Maximum)
1.8 gpm
Media Temperature (Maximum)
140 Degrees F
Frequency
60 Hz
Best Efficiency Flow
6.6 gpm
Flow Rate @ 1 ft of Head (Maximum)
10.7 gpm
Flow Rate @ 5 ft of Head (Maximum)
10.1 gpm
Motor Speed (Maximum)
3,100 RPM
Flow Rate (Minimum)
1 gpm
Duty Cycle
Continuous
Impeller Design
Semi-Open
Horsepower (Maximum)
1/25 hp
Current
0.6 A
Nameplate Voltage
115V AC
Shut Off Pressure (Maximum)
29 psi
Flow Rate @ 10 ft of Head (Maximum)
7.3 gpm
Flow Rate @ 15 ft of Head (Maximum)
4.6 gpm
Viscosity (Maximum)
30 cps
Flow Rate (Maximum)
10.7 gpm
Feet of Head (Maximum)
22.5 ft
Wetted Material
316 Stainless Steel, Carbon, EPDM, Noryl, Viton
Best Efficiency Head
11.5 ft
Motor Speed - Maximum
3,100 RPM
Pump Housing Material
Noryl
Flow Rate @ 10 ft of Head - Maximum
7.3 gpm
Media Temperature - Maximum
140 Degrees F
Shut Off Pressure - Maximum
29 psi
Horsepower
1/25 hp
Discharge Standard
Barbed
Inlet Standard
Barbed

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Feet of Head (Maximum) 22.5 ft, Flow Rate (Maximum) 10.7 gpm, Horsepower (Maximum) 1/25 hp, Housing Material Noryl, Impeller Design Semi-Open, Impeller Material Noryl, Intake Pipe Size 3/4 in, Media Temperature (Maximum) 140 Degrees F, Phase Single, Shut Off Pressure (Maximum) 29 psi, Viscosity (Maximum) 30 cps, Flow Rate @ 10 ft of Head (Maximum) 7.3 gpm, Flow Rate @ 15 ft of Head (Maximum) 4.6 gpm, Flow Rate @ 20 ft of Head (Maximum) 1.8 gpm
